2023 Orange Bikes Crush MX PRO Large
NZ-B23CRMXPRO-L

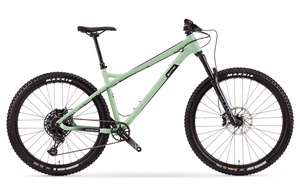

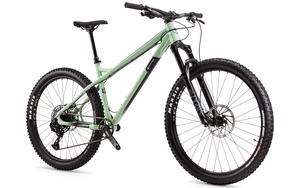

2023 Orange Bikes Crush MX PRO Hardtail Large Jagger Green …
Welcome to the quiver: the CRUSH MX Pro.
This 140mm travel mixed wheel trail slayer could be your perfect only bike or an ideal N+1. It features a 6061 custom butted aluminium frame, 64.5° head angle, reduced offset fork, 75.5° seat angle, 430mm chain stays and a reach of 480mm (size large). providing you with the stability to ride in even the toughest of conditions but not being so overkill you couldn't ride you'r local loop with a smile on your face. Additional details include a sleek tapered head tube, CNC dropper cable guides, plenty of tyre clearance to accommodate even the wildest of 2.6 tyres and a new seat stay bridge.
FRAME AND FORK
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: MX - 29/27.5.
Rear Shock: N/A
Headset: FPD 44mm / 56mm zerostack
Fork: RockShox Lyrik Select 140mm 29
Swingarm: Bolt Type Allen Key Head (Boost 148mm Hub)
DRIVETRAIN
Chain Device: Not Included
Bottom Bracket: SRAM DUB
Crankset: SRAM SX Eagle 32t
Rear Mech: SRAM SX Eagle 12spd
Chain: SRAM SX Eagle
Shifters: SRAM SX Eagle
Cassette: SRAM SX 1210 11-50T Eagle
WHEEL AND TYRES
Wheelset: WTB ST i30 on Strange 29 +27
Tyres: Maxxis Minion DHF 2.5 3c EXO 29/ DHR II 2.4 EXO 27.5
BRAKING
Brakes: SRAM Guide T 200/180
FINISHING KIT
Seatpost: KS Ragei 150/170mm Drop
Seat Clamp: Strange Bolted
Stem: Race Face Chester M35 x 40mm
Saddle: WTB Volt SL
Handlebars: RaceFace Chester 780mm M35
Grips: Strange Grappler Lock-On
