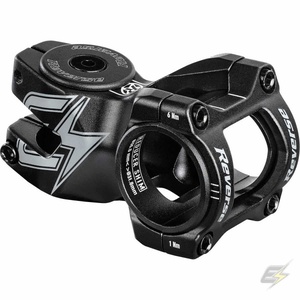

Stem Reverse E-Black-ONE D-2 50mm 31,8 & 35mm
01650
Stem E-Black-ONE D-2 50mm Ø31,8 & Ø35mm Reverse Components Black …
1 Stem, 2 handlebar diameters. The Black One D-2 stem builds on the success of our flagship Black One Enduro stem and brings in the ability to run both Ø31.8mm and Ø35mm handlebars with one stem.
The special designed shim allows the use of Ø31.8mm bars and when removed, it works as an Ø35mm stem. The shim provides a wide, smooth clamping area which is ideal for use with carbon bars.
The intelligent no-gap clamping design in the bottom ensure no pinch points, and equal clamping force for safety and stability. Because the most loads and notching effects are always at the bottom of the handlebar. And our smooth no-gap surface enlarges the lifetime of your handlebars.
The Black One D-2 is ideal for riders who have a few sets of Ø31.8mm/35mm bars with different rises and want to continue using them all, or who may want to upgrade to a 35mm bar in the future, without having to buy another stem.
The components need to be able to take higher loads due to the frequency and duration of rides being significantly higher on an E-Bike, Your regular after work ride you did once in the pre-E-Bike-era, can be ridden three times in the same time today with support of pedal assist. That s why the cockpits of modern E-Bikes have to take much higher loads than before. With the development of our E series stems, we responded to these demands.
The E-Black One Enduro stem was tested with the toughest fatigue testing method by EFBE test laboratory and managed all cycles of testing with ease.
Tested in Germany, this stem can be safely mounted on any e-bike and is known by it s design and its stiffness!
To give you more guidance on your bike setup, we have developed the stem calculator.
This shows you how the reach & stack changes when you change stem length or stem angle. In addition, you will find an explanation of what the terms "reach & stack" are all about. (click here)
Features:
- Length: 50 mm
- Clamping diameter: Ø 31.8 mm & Ø 35.0 mm
- Angle: 8°
- Stack height: 40 mm
- Clamping platform: 50 mm
- Ø head tube: 1 1/8"
- Weight: 160g (+/- 5% weight tolerance)
- Material: Aluminium 6061 T6
Color:
Black / Grey
Extras:
- Reducer Shim
- Top Cap with screw & claw
- E-Safety Level: Category 5 (Maximum)
- EFBE E-MTB Tri Test (EPAC MTB-GR) tested
- Micro adjustment lines: for better orientation in the alignment of the handlebar
