Ethirteen Helix Sram XD Cassette 12s 9-50T
FW2HRA-102

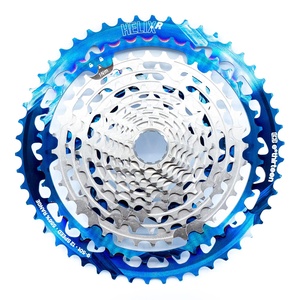

e*thirteen Helix Race Cassette 12s 9-50T Intergalactic Blue
Compatible with …
Helix Race 12-speed, 556% Range, 384g
More Range, Less Weight
The HELIX Race Cassette is an upgrade to SRAM™ Eagle™ drivetrain*, with more range than any other cassette on the market. The 9 tooth cog lets you step down one chainring size while keeping the same top end gearing and provides not only better ground clearance, but an overall lighter drivetrain.
PRODUCT FEATURES
Compatible with SRAM™ 12 speed drivetrains
2-piece design allows for replaceable aluminum cogs
E*spec uprated for E-bike use
RIDER BENEFITS
Reduces un-sprung rear wheel weight for improved suspension function and handling
Excellent shifting with SRAM™ systems without compromise
e*thirteen’s wider range and 9 tooth cog allows riders to run a 2 tooth smaller chainring for more clearance and reduced weights
*XD™ driver required.
*Hope XD drivers are undersized at the clamp location and require a Cassette Shim Kit that is included with the 9-50T cassette in the box.
PRODUCT SPEC
Compatibility
Compatible with all SRAM™️ Eagle 12 sp, drivetrains.
Not compatible with SRAM™️ Transmission™️ / T-Type™️ systems.
Freehub Mount XD™ and XDR™ (with shim) Drivers Only
Material 2 aluminum cogs, 10 steel cogs. PVD finishing on Intergalactic model improves durability and wear life.
Range 556%
Size 9-50T: 9, 11, 13, 15, 17, 20, 23, 27, 31, 36, 42, 50
Speeds 12 Speed
Weight 384g
