Helix Race Cassette 12s 9-52T e*thirteen Grey
FW2HRA-122

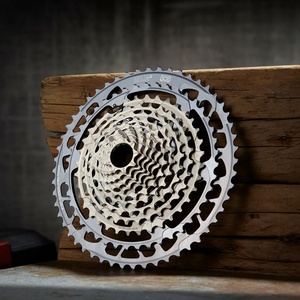

e*thirteen Helix Race Cassette 12 speed 9-52T Grey
MOST RANGE. CROSS COMPATIBLE.
e*thirteen expanded drivetrain possibilities for every rider with our original 9-50T Helix Race Cassette with 533% gear range. Our proprietary 9t sprocket and patented two-piece construction gave riders an unprecedented ability to build the drivetrain of their choice.
Now, we’ve built on that winning formula and added a 52T sprocket for an eye-watering 578% total range.
Love to grind climbs? Throw on a 28T chainring and go pull some stumps. Hungry for top speed? Push a big ring, comfortable in the knowledge that you’ve got the most gear range you can get from a single-ring, 12-speed setup.
PRODUCT FEATURES
Widest range in the galaxy at 578%
Cross compatibility with Shimano, SRAM, and TRP drivetrains and chains
2-piece forged/machined design provides ease of assembly/service and reduces waste
Aluminum and Steel clusters can be replaced separately to reduce service cost
43-52t aluminum cluster backward compatible with 9-50T Helix Plus or Race cassettes
Unique 9T high gear allows use of smaller chainrings for clearance and weight savings
5 bright anodized or PVD color options
Tested extensively for analog and e-bike use
*Hope XD drivers are undersized at the clamp location and require a Cassette Shim Kit.
PRODUCT SPEC
Freehub Mount XD™ and XDR™ Drivers Only
Material 2 aluminum cogs, 10 steel cogs. PVD finishing on Intergalactic model improves durability and wear life.
Range 578%
Size 9-52T: 9, 11, 13, 15, 17, 20, 23, 27, 31, 36, 43, 52
Speeds 12 Speed
Weight 404g
Product Fitment
| Make | Model | Year | Capacity |
|---|---|---|---|
| No fitment information available | |||
