Reverse Components Single Speed Conversion Kit - 13T (Light-Blue / Shimano HG)

The Reverse Components single-speed conversion kit allows you to convert your conventional hub with a Shimano-HG freewheel/freehub body to a clean, reliable single-speed drivetrain. Thanks to the seven included spacers, the cog can be optimally positioned on the freehub body to guarantee a perfectly straight chainline.

The Reverse single-speed cog comes with an extra-wide base flange of 7 mm, which distributes power transfer gently across the freehub body. Common cogs feature a flange width of only 2.8 mm, which can easily gouge and cut into softer aluminum freehubs, leading to permanent damage. The 7 mm width Reverse cog drastically reduces this possibility.

Key Features

• Freehub Protection: Extra-wide 7mm cog base flange prevents the cog from chewing into softer aluminum Shimano HG freehub bodies.


• Perfect Chainline Tuning: Includes 7 precision spacers (2x 10mm, 1x 5mm, 4x 3mm) to dial in optimal alignment.


• Chain Compatibility: Works seamlessly with standard 1-by-11 speed chains, as well as 1/8" and 3/32" single-speed chains.

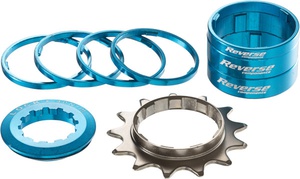

• Complete Custom Kit: Includes the 13T steel cog, 7 spacers, and a matching light-blue anodized lockring.

Specifications

• Brand: Reverse Components


• Product Type: Single-Speed Conversion Kit


• Freehub Standard: Shimano HG


• Cog Size: 13 Teeth (13T)


• Tooth Thickness: 1.8 mm


• Flange Width: 7.0 mm


• Chain Compatibility: 1x to 11-speed chains, 1/8", 3/32"


• Spacers Included: 7 pieces (2x 10 mm, 1x 5 mm, 4x 3 mm)


• Material: Steel (Cog) / Aluminium (Spacers)


• Weight: 49g (+/- 5% weight tolerance)


• Color: Light-Blue


• Item Code / SKU: 40206


• EAN: 4717480157181
