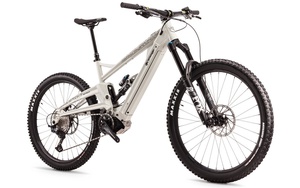

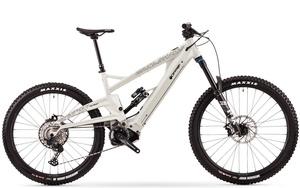

2024 Orange Bikes Ebike Patriot MX LE Large
B24PAMXLE-L
2024 Ebike Orange Bikes Patriot MX LE Gloss Smoked White …
Brand New Frame designed and built in Britain
5 year frame warranty with Limited Lifetime Crash Replacement
Bosch Performance Line CX Drive Assist
29 front/27.5 rear mixed size wheelset
Bosch Power Tube 750wh integrated battery in downtube
Easy access charging port
Boost 148mm rear hub spacing
Orange trail honed geometry
Reduced offset fork
Long top tube short stem for high-speed stability
Bosch Performance Line CX FEATURES
85Nm maximum drive torque
2.9kg total weight
Bosch Power Tube 750wh integrated battery in downtube
eMTB Dynamic Ride Mode - with Extended Boost, for a natural ride feel and optimal control
Smart walk assitance with hill hold
4 Customisable Ride Modes (Eco/Tour/eMTB/Turbo)
eBike Flow App - Apple App/Google Play (with optional subscription to features)
eBike Lock, Ride Screen, Navigation with flow app
Over-the-air updates with Flow app
FRAME AND FORK
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: MX - 29/27.5. Rear wheel travel: 170.
Swingarm Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
Rear Shock Fox Float X Performance 205x65
Headset FPD 49mm / 56mm zerostack
Fork Fox Performance 38 Float 170mm 29
DRIVETRAIN
Chain Device E13 Vario Compact Guide
Bottom Bracket Bosch Performance Line CX DU Integrated
Crankset Race Face Aeffect R E-MTB 165mm 34t
Rear Mech Shimano SLX 12spd
Chain SRAM NX Eagle
Shifters Shimano SLX 12spd
Cassette Shimano SLX 10-51T 12spd
WHEEL AND TYRES
Wheelset Stans Flow Mk4 + Hope Pro 5 (Black) 29 + 27
Tyres Maxxis Minion DHF 2.5 3c EXO+ 29 / DHR II 2.4 3c EXO+ 27.5
BRAKING
Brakes SRAM Guide RE 200/200
FINISHING KIT
Seatpost SDG Tellis 150/170mm
Seat Clamp Strange Bolted
Stem Burgtec Enduro Black 42.5mm
Saddle SDG Strange Bel Air III
Handlebars Burgtec RideWide Enduro 800mm
Grips Strange Grappler Lock-On
POWER ASSIST
Control Switch Bosch Purion 200
Drive Display Bosch Purion 200
Battery Bosch Power Tube 750wh
Drive Unit Bosch Performance Line CX
