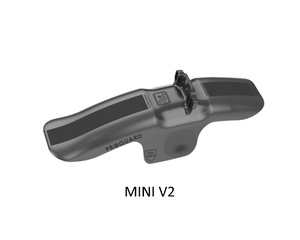

ProGuard Front Mudguard MINI – Bolt-On v2 MTB

The ProGuard Bolt-On v2 is the evolution of RRP’s highly acclaimed v1 system, offering outstanding protection with the cleanest, most factory-level fit available. The v2 platform increases fork compatibility, improves bottom-out clearance, and adds more adjustability and stability than any other bolt-on mudguard on the market.

Included in the MINI Bolt-On v2 Kit

• M3 × 2 bolts (FOX / Marzocchi)


• M4 × 3 bolts (Öhlins)


• M6 × 1 bolt (SR Suntour)


• 2 × thick rubber pads for stability and fork protection


• 2 × tilt brackets for fine‑tuning mudguard angle


• 1 × long 3 mm Allen key

Bolts supplied with adapter brackets (sold separately):

• M3 extra‑long × 1 (ZEB / Domain / Lyrik / Pike adapter brackets)


• M4 long × 1 (RXF34 fitting kit & DVO Diamond)


• M5 × 2 (EXT ERA / XFusion)

What’s New in v2

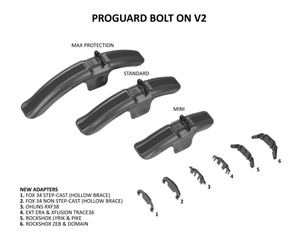

• More sizes available: MINI, STD, MAX


• More fork compatibility than any other bolt-on mudguard


• More bottom-out clearance


• More vertical adjustment


• More stability and seal protection

New Forks Compatible (some via adapters)

• MY2022 RockShox ZEB


• MY2022 RockShox Domain


• MY2023 RockShox Lyrik


• MY2023 RockShox Pike


• MY2022 Fox 34 (Step‑Cast & Non Step‑Cast – hollow brace)


• MY2021 Öhlins RXF38


• MY2020 EXT ERA


• MY2020 XFusion Trace36

Some forks require a Stability Bracket or Adapter Bracket for correct fitment. View the official compatibility chart here:
ProGuard Bolt-On Fork Compatibility PDF

Size & Weight

• MINI: 389 mm long, 94 g (without bolts)


• STANDARD: 503 mm long, 121 g (without bolts)


• MAX: 600 mm long, 137 g (without bolts)
  Note: MAX not suitable for aggressive / DH riding

Compatibility

• Wheels: 26”, 27.5”, 29”


• Tyres: Up to 3”


• Brake: Disc brake only


• Fork offset: Minimum 44 mm


• Forks must have threaded holes – always check OE forks

Important: Always check bottom-out clearance before riding, as fork designs change frequently.

The ProGuard Bolt-On v2 MINI is the perfect choice for riders wanting a compact, lightweight mudguard with the cleanest bolt-on fit and the widest fork compatibility available.
