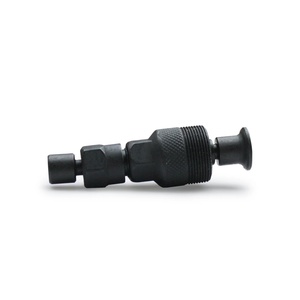

Pedro's Compact Crank Remover - 22mm x 1 Crank Puller

The Pedro's Compact Crank Remover is a precision crank puller for press-fit cranks on square taper and splined bottom bracket spindles. It threads into the crank's 22mm x 1 extractor thread and pushes the arm off the spindle.

The updated design includes two tip inserts to suit both spindle types, and a floating tip that makes removal easier. It has no handle of its own, which keeps it compact; it is driven with any 15mm wrench.

Key Features

• Fits all cranks with 22mm x 1 extractor threads
• For square taper and splined bottom bracket spindles
• Two interchangeable tip inserts included
• Floating tip design for easy removal
• Precision tolerances for an accurate fit
• Heat-treated tool steel
• Backed by Pedro's lifetime warranty

Compatibility

• Square taper spindles
• Splined spindles such as Shimano Octalink and ISIS Drive
• Any crank with 22mm x 1 extractor threads

In the Box

• 1 x Compact Crank Remover
• 2 x tip inserts

You Will Also Need

• A 15mm wrench to turn the tool, such as the Pedro's Equalizer Pedal Wrench II (code 6463011) or a pedal wrench (sold separately)

Good to Know

• Not intended for self-extracting crank bolts or crank systems without 22mm x 1 extractor threads.

Care & Safety

Remove the crank bolt first and thread the tool fully into the crank before turning the drive, to avoid stripping the extractor threads.
