Pedro's Headset and Bearing Press - Headsets and Press-Fit BBs

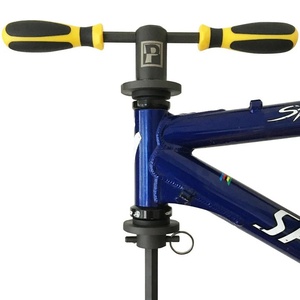

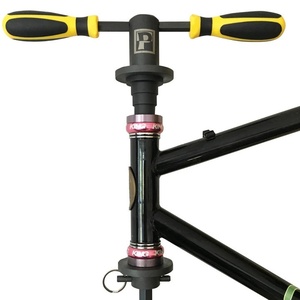

The Pedro's Headset and Bearing Press is a professional tool for pressing headset cups and press-fit bottom brackets in straight and accurately.

A precision roller thrust bearing gives smooth, low-effort pressing, and the quick-release lower module makes positioning and removal fast. It has a working range of 60mm to 320mm and removable ergonomic handles.

Key Features

• Installs 1in, 1-1/8in, 1-1/4in and 1.5in headsets
• Installs most press-fit bottom brackets (with optional bushing set)
• Working range 60mm to 320mm
• Precision roller thrust bearing
• Quick-release lower press module
• Removable 33cm ergonomic handles
• Covered by Pedro's lifetime tool warranty

Compatibility

• 1in, 1-1/8in, 1-1/4in and 1.5in headset cups
• Most press-fit bottom brackets, using the Bottom Bracket Bushing Set (code 6450925, sold separately)
• Brand-specific cup bushings with a 22mm inside diameter

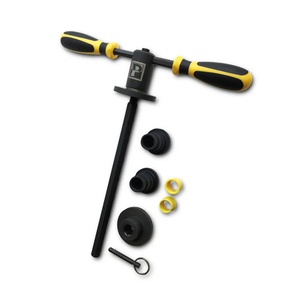

In the Box

• 1 x Headset and Bearing Press with handles

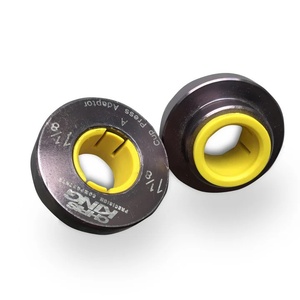

• 2 x Stepped Cup Bushings (fit most 1in and 1-1/8in standard headset cups)
• 2 x 22mm ID Shim Adapters

You Will Also Need

• Bottom Bracket Bushing Set (code 6450925) for press-fit bottom brackets (sold separately)

Care & Safety

Check that cups and bearings start square in the frame before pressing, and use bushings that match the part being installed.
