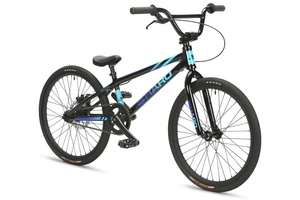

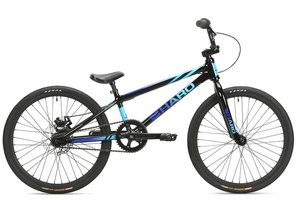

Haro Bikes BMX Race Lite Expert Black Size 20
24531
Haro Bikes Bike Race Lite Expert Black Size 20
Moving …
Moving up in the ranks? Whether you're racing in the expert class or not, the Haro Race Lite Expert is the perfect bike for riders that have outgrown a Mini but are not ready for a full-sized machine. A heat-treated alloy frame with a 19" top tube length provides knee room and stability at full speed. The Expert is the smallest bike in the Haro lineup to feature a rear disc brake and has a sealed cassette rear hub and bottom bracket too. Looks fast, goes fast, stops easy.
FEATURES
6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners. 19" top tube.
Full chromoly 1" with threadless steerer tube
2-piece forged alloy 155mm crank w/24mm hollow spindle. 38T chainring.
20" alloy 28h double-wall rims
28h alloy hubs with sealed 15T cassette rear
Kenda "Kompact" 20 x 1 1/8" tires
FRAMESET
Frame 6061-T6 Heat Treated Alloy Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner
Fork Full chromoly 1" Threadless Steerer
Colors Black
DRIVETRAIN
Cranks 2-pc Forged Alloy 155mm w/ 24mm Hollow Spindle
Bottom Bracket Sealed Bearing Square Taper
Sprocket 38T
Gearing 38/15
Pedals Mini Alloy DX, 9/16"
Chain KMC Z33 1/2 X 3/32"
Cassette 15t Cassette
WHEELS
Tires Kenda "Kompact" 20 x 1 1/8"
Front Hub 28h Alloy Sealed-Bearing
Rear Hub 28h Alloy Sealed-Bearing w/ Cassette Rear
Rims 20" Alloy 28h, Double Wall
BRAKING SYSTEM
Brake Promax V-Brake
Brake Lever Promax Two-finger
OTHER COMPONENTS
Grips Mini Micro-Knurl Grip
Handlebar Haro Mini Alloy Bar, 6.5" Rise
Stem Forged Alloy Top-Load, 45mm Ext.
Headset 1" Semi-Sealed Threadless
Seat One-piece seat/post combo
Seat Post Alloy, 22.2mm
Seat Post Clamp Alloy, 25.4mm
Extras Disc brake Adapter, Disc ready rear hub
Size 20 (4'8" - 5'4"inches)
Head Angle 73°
Seat Angle 71°
Top Tube 19" (479.5mm)
Seat Tube 9.2" (233mm)
Chainstay 13.7" (349mm)
BB Height 11" (280mm)
Stand Over 19.5" (495.3mm)
