Bike Race Lite Expert XL Black Size 20 Haro Bikes
24533
Haro Bikes Bike Race Lite Expert XL Black Size 20

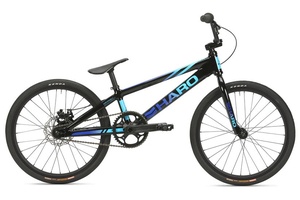

Almost there. Just short of full-sized, the Haro Race Lite Expert XL features a 20" top tube length with room to move. Lightweight aluminum construction with a sturdy chromoly fork to handle the hard landings of the learning curve. The parts are size-matched to fit the slightly longer frame with 170mm 2-piece alloy cranks and instead of the narrower "Mini" sized wheels and tires of the smaller bikes in the lineup, the Expert XL features 20 X 1.5" alloy rims with a 1.65" front and 1.5" rear tire for more surface contact to put the power to the ground. A rear disc brake slows your roll when you've crossed the finish line.
FEATURES
6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners. 20" top tube.
Full chromoly 1" with threadless steerer tube
2-pc Forged Alloy 165mm crank w/ 24mm hollow spindle. 38T chainring.
20" Alloy 36h double wall rims
36h alloy sealed bearing hubs w/disc 15T cassette rear
Kenda "Konversion" tires: 20 x 1.65" front/20 x 1.50" rear
FRAMESET

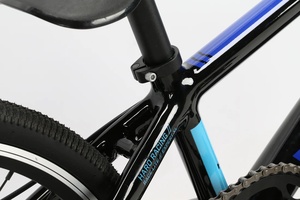

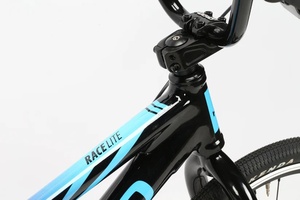

Frame 6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners

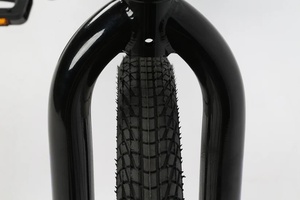

Fork Full chromoly 1 1/8" Threadless Steerer w/tapered legs
Colors Black
DRIVETRAIN
Cranks 2-pc Forged Alloy w/ 24mm Hollow Spindle. 165mm
Bottom Bracket Press-Fit BB86, Sealed Bearing
Sprocket 38t Alloy Chainring
Gearing 38/15
Pedals Alloy DX, 9/16"
Chain KMC Z33 1/2 X 3/32"
Cassette 15t Cassette
WHEELS
Tires Kenda "Konversion" tires: 20 x 1.65" front/20 x 1.50" rear
Front Hub 36h Alloy Sealed-Bearing
Rear Hub 36h Alloy Sealed-Bearing w/ Disc Cassette Rear
Rims 20" Alloy 36h, Double Wall
BRAKING SYSTEM
Brake Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor
Brake Lever Promax XL-373 Two Finger
OTHER COMPONENTS
Grips Micro-Knurl Grip

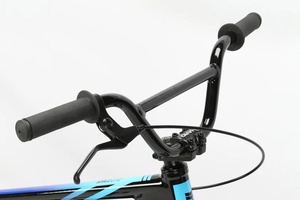

Handlebar Haro Mini Alloy Bar, 6.5" Rise
Stem Forged Alloy Top-Load, 45mm Ext.
Headset 1-1/8" Sealed Threadless
Seat Haro Slim Plastic Pivotal
Seat Post Alloy Pivotal, 27.2mm
Seat Post Clamp Alloy, 31.8mm
Size 20 (5'3" - 5'8" inches)
Head Angle 73°
Seat Angle 70°
Top Tube 20" (507mm)
Seat Tube 8.8" (224mm)
Chainstay 13.9" (352mm)
BB Height 11" (280mm)
Stand Over 19.5" (495.3mm)
