Bike Steel Reserve 1 Matte Black Haro
14854
Haro Bikes Steel Reserve 1 Matte Black Bike
Meet the new Steel Reserve. Our all-new series of dirt jumpers built from the ground up to go sky-high, the SR1 gets you into the game with BMX-inspired feels. Start with an all-chromoly frame with a tapered, integrated head tube to house the rigid, chromoly fork for stiff, responsive control on all terrains. Haro 3-piece chromoly cranks spin on a sealed Euro bottom bracket, with a Halflink chain to pull your rear wheel in for the shortest, most responsive rear end possible. Sealed bearings all around, double-wall rims and a Tektro disc brake bring it on home. For the skatepark, pump track or roasting big sets, the Steel Reserve 1 is ready to go.
FEATURES
Full chromoly frame w/ Integrated HT, Euro bottom bracket
1 1/8" - 1 1/5" Threadless Full chromoly Fork w/ One Piece CNC Internally Threaded Steerer Tube & Tapered Legs
Haro Baseline 3-pc chromoly 8 Spline 165mm
28/14
Baseline Halflink Chain
Alloy 6061 PG; 50mm rise; 35mm bore; 780w; 9° back; 5° up
Premium "CK" Grips
26", 36 Hole Alloy, Double Wall, Pinned 30 Inner Width
Front - 26x2.4" Kenda booster / Rear - 26x2.35" Haro MS5
Tektro Mechanical Disc Brake 160mm Rotor
FRAMESET

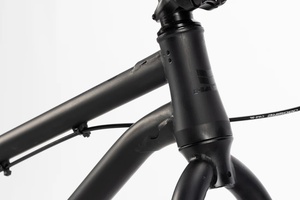

Frame 100% Chromoly frame with integrated headtube, Euro BB
Fork 100% Chromoly One Piece CNC'd 1 1/8" - 1.5" Internally Threaded Steerer Tube, Tapered Legs
DRIVETRAIN

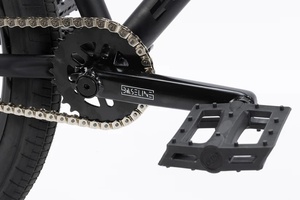

Cranks Baseline 8 Spline 165mm
Pedals Polycarbonate
Chain Baseline Halflink Chain
Bottom Bracket Double row sealed bearing euro BB
WHEELS
Tires Front - 26x2.4" Kenda booster, Rear - 26x2.35" Haro MS5
Wheels/Rims 26", 36 Hole Alloy, Double Wall, Pinned 30mm Inner Width

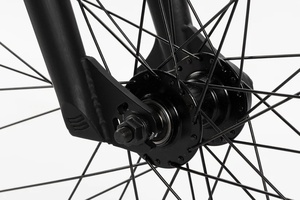

Front Hub Alloy double row sealed bearing 3/8" axle
Rear Hub Alloy sealed Cassette
BRAKING SYSTEM
Brakes Tektro Mechanical Disc 160mm Rotor
OTHER COMPONENTS

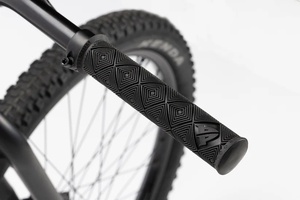

Grips/Tape Premium "CK" Grips
Handlebar 6061 Aluminum 50mm rise, 35mm clamp, 780mm width, 9° back, 5° up
Stem Aluminum 50mm reach, 35mm clamp
Headset FSA 45° X 45° ACB Sealed 1-1/8" - 1.5"

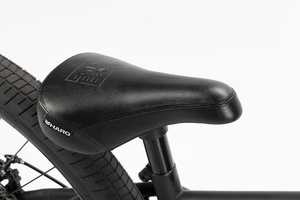

Saddle Baseline 2 Piece
Seat Post 27.2 Alloy Pivotal
Seat Clamp Integrated
SIZE
Seat Tube (C-T) 320mm
Top Tube (Effective) 586.5mm
Head Tube Angle 69°
Seat Tube Angle 67.5°
Chainstay Length 399mm
BB Drop 17.5mm
Wheelbase 1064.5mm
Head Tube Length 112mm
Reach 415mm
Axle to Crown 478mm
Fork Offset 40mm
