Simple, slack and full-on fun. The Saguaro 29-inch hardtail is purpose built to be the most versatile bike in your quiver. Make no mistake, this hardcore hardtail is no XC bike. With an aggressive geometry and slack head angle that is more inclined to hauling down hills than pedaling up them, the Saguaro is stretched out in the front and shortened up in the back for a stable ride at speed. As one of our testers put it: "It makes mellow trails more fun". Hit the jumps, hammer the single track and rip the turns. The Saguaro is everything you need, and nothing you don't. All three models of the Saguaro bike collection feature our heat-treated 6061 aluminum Saguaro frame with three spec levels to fit your needs (and budget). The most affordable of the Saguaro family. The Saguaro 3 features the same top-shelf aluminum frame set as level 1 and 2. We dialed back the spec a little to bring the cost down, but there's no compromise in performance: RockShox TK35 140mm travel fork, Shimano Cues 11-speed gearing, WTB rims, sealed hubs, tubeless tires and a TranzX dropper post--everything to handle business in style.

FEATURES
Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Double-butted top and down tubes. Internal cable routing. Tapered head tube.
Modern geometry: 64.5 degree head tube angle with a longer front triangle and shorter rear end.
RockShox TK35 Silver. 140mm travel fork.
WTB KOM Team 32 hole rims, with CNC-ed, sealed 15mm thru-axle front and six-sealed bearing, 12mm thru-axle (rear) hubs.

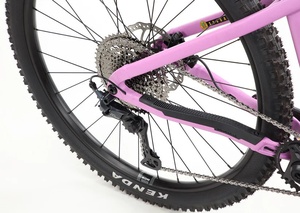

Shimano Cues 11-speed Shadow Plus transmission
Tires: Tubeless Kenda Pinner 29 X 2.4" ATC (front)/Kenda Nevegal 2, 29 X 2.4"ATC (rear). Sealant included. Small size features 27 X 2.5" rear "mullet" configuration.
TranzX dropper post. Size-specific per frame size.
Tektro Gemini HD-M530 hydraulic brakes. 4-piston front, 2-piston rear. 180mm rotors.
Full 29er. Small size features "mullet" wheel configuration with 29" front, 27.5" rear

FRAMESET
Frame Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Double-butted top and down tubes. Internal cable routing. UDH derailleur hanger. Tapered head tube. Frame will accommodate up to 2.6" tires.
Fork RockShox TK 35 Silver 140mm
Colors Metallic Green, Matte Mauve
DRIVETRAIN

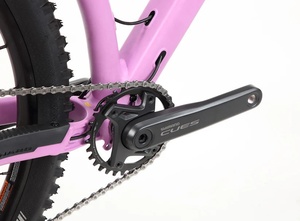

Cranks Shimano Cues 2-piece. 170mm. 32T chainring
Pedals
Rear Derailleur Shimano Cues 11-speed
Derailleur Shifter Shimano Cues 11-speed
Freewheel/Cassette Shimano Cues 11-speed, 11-50T
WHEELS
Tires Tubeless Kenda Pinner 29 X 2.4" ATC (front)/Kenda Nevegal 2, 29 X 2.4" ATC (rear). Sealant included. Small size features 27.5 X 2.4" rear "mullet" configuration.
Wheels/Rims WTB KOM Team I 30, TCS 2.0, sleeved. 32H
Front Hub Fully sealed CNC-machined alloy 110x15mm boost thru-axle, 6-bolt disc
Rear Hub Fully sealed CNC-machined alloy 148x12mm boost thru-axle, 3-pawl cassette, 6-bolt disc
BRAKING SYSTEM
Brakes Front: Tektro HD-M530-F, 4-piston hydraulic disc,180mm rotor /Rear: Tektro HD-M530-R, 2-piston hydraulic disc, 180mm rotor
OTHER COMPONENTS
Grips/Tape WTB Wavelength lock-on

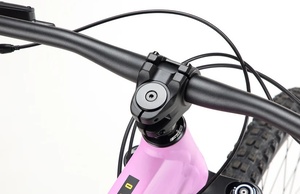

Handlebar Haro Alloy 800mm wide, 20mm rise, 6° back sweep, 4° up sweep
Stem Satori Ursa 35mm reach, 0° rise
Headset FSA Orbit sealed, tapered 1-1/8" - 1-1/5"
Saddle WTB Volt Medium chromoly rails. PU Leather. Flex-tuned.
Seat Post TranzX JD-YSI34 dropper. Small 150mm, Medium 170mm, Large/X-large 200mm
Extras Tubeless tire sealant included.

SIZE M
Seat Tube (C-T) 405mm
Top Tube (Effective) 601.2mm
Head Tube Angle 64.5°
Seat Tube Angle 76.5°
Chainstay Length 430mm
BB Drop 70mm
Wheelbase 1195.1mm
Head Tube Length 110mm
Standover 706mm
Stack Height 650.8mm
Reach 445mm
Axle to Crown
Fork Offset 44mm
Stem Length
Bar Width
Crank Length
Wheel Size 29"

Size Inches CM
M 5' 4" - 5' 11" 162 - 180
