Simple, slack and full-on fun. The Saguaro 29-inch hardtail is purpose built to be the most versatile bike in your quiver. Make no mistake, this hardcore hardtail is no XC bike. With an aggressive geometry and slack head angle that is more inclined to hauling down hills than pedaling up them, the Saguaro is stretched out in the front and shortened up in the back for a stable ride at speed. As one of our testers put it: "It makes mellow trails more fun". Hit the jumps, hammer the single track and rip the turns. The Saguaro is everything you need, and nothing you don't. All three models of the Saguaro bike collection feature our heat-treated 6061 aluminum Saguaro frame with three spec levels to fit your needs (and budget). Meet in the middle on the Saguaro level 2. Built on the same bulletproof alloy frame as the rest of the family, the Saguaro 2 has a Marzocchi Bomber Z2 fork, SRAM NX Eagle 12-speed drivetrain, tubeless tires and a TranzX dropper post in frame size-specific lengths. The perfect blend of value and high-performance fun.

FEATURES
Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Double-butted top and down tubes. Internal cable routing. Tapered head tube.
Modern geometry: 64.5 degree head tube angle with a longer front triangle and shorter rear end.
Marzocchi Bomber Z2 fork. 140mm travel. 44mm rake.
WTB KOM Tough rims, 32 hole with CNC-ed, sealed 15mm thru-axle front and six-sealed bearing, 12mm Boost thru-axle (rear) hubs.
NX Eagle 12-speed transmission.
Tires: Tubeless Kenda Pinner 29 X 2.4" ATC (front)/Kenda Nevegal 2, 29 X 2.4"ATC (rear). Sealant included.
TranzX JD-YSP39J dropper post, size-specific per frame size.
TRP Slate Evo 4-piston hydraulic brakes, 203mm rotor front, 180mm rotor rear.
Full 29er. Small size features "mullet" wheel configuration with 29" front, 27.5" rear

FRAMESET
Frame Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Double-butted top and down tubes. Internal cable routing. UDH derailleur hanger. Tapered head tube. Frame will accommodate up to 2.6" tires.
Fork Marzocchi Bomber Z2; 140mm travel. 44mm rake.
Colors Metallic Green, Matte Mauve
DRIVETRAIN

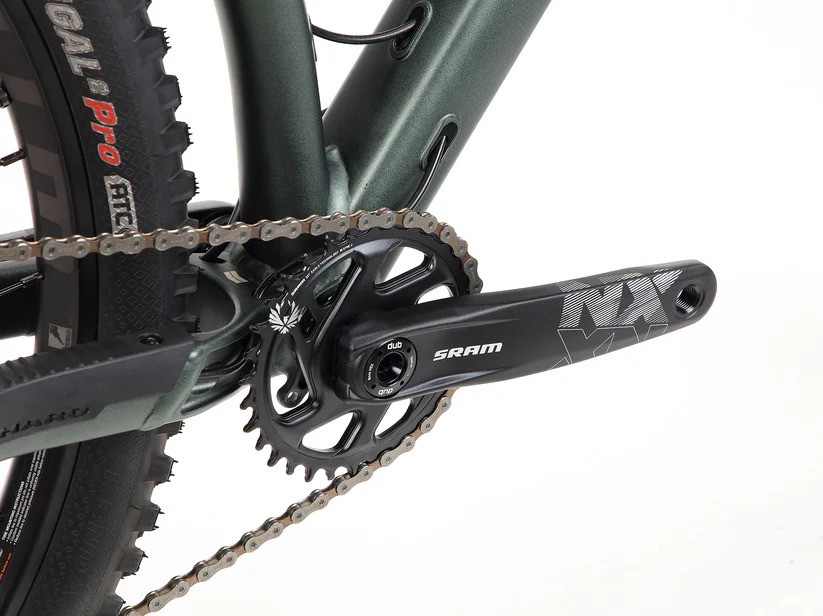

Cranks SRAM NX Eagle 32T, 170mm
Pedals

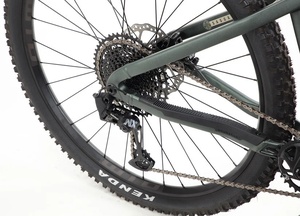

Rear Derailleur SRAM NX Eagle 12-speed
Derailleur Shifter SRAM NX Eagle 12-speed
Freewheel/Cassette SRAM Eagle 11-50T
WHEELS
Tires Tubeless Kenda Pinner 29 X 2.4" ATC (front)/Kenda Nevegal 2, 29 X 2.4" ATC (rear). Sealant included. Small size features 27.5 X 2.4" rear "mullet" configuration.
Wheels/Rims WTB, KOM Tough, 30MM, TCS 2.0, sleeved. 32H
Front Hub Fully sealed, CNC-machined alloy. 110x15mm boost thru-axle, 6-bolt disc.
Rear Hub Fully sealed, CNC-machined alloy. 148x12mm boost thru-axle, 6-bolt disc.
BRAKING SYSTEM

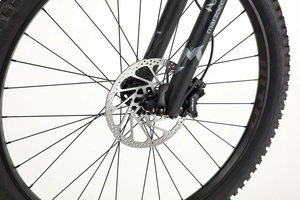

Brakes TRP Slate Evo 4-piston hydraulic. 203mm rotor (front)/180mm rotor (rear).
OTHER COMPONENTS

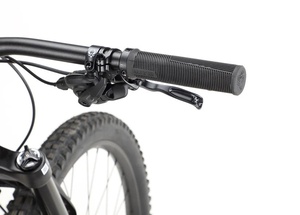

Grips/Tape WTB Wavelength lock-on
Handlebar Haro Alloy 800mm wide, 20mm Rise, 6° back sweep, 4° up sweep
Stem Satori Ursa 35mm reach, 0° rise
Headset FSA Orbit Tapered 1-1/8" - 1-1/5", 1.5E ZS/ NO.57E

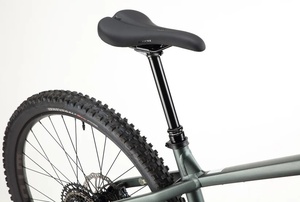

Saddle WTB Volt Medium chromoly rails. PU Leather. Flex-tuned.
Seat Post TranzX JD-YSP39J dropper. Small 150mm, Medium 170mm, Large/X-Large 200mm
Extras Tubeless tire sealant included.

SIZE M
Seat Tube (C-T) 405mm
Top Tube (Effective) 601.2mm
Head Tube Angle 64.5°
Seat Tube Angle 76.5°
Chainstay Length 430mm
BB Drop 70mm
Wheelbase 1195.1mm
Head Tube Length 110mm
Standover 706mm
Stack Height 650.8mm
Reach 445mm
Axle to Crown
Fork Offset 44mm
Stem Length
Bar Width
Crank Length
Wheel Size 29"

Size Inches CM
M 5' 4" - 5' 11" 162 - 180

Product Fitment
