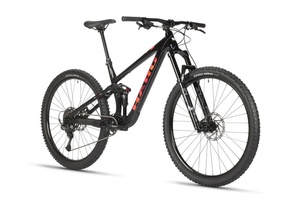

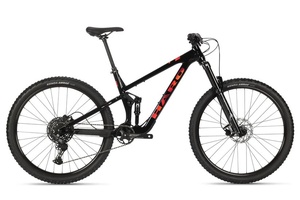

Named after one of our go-to trail networks, the Daley is our all-new, all-mountain 29er, ready for the climb & grind. Starting with our exclusive aluminum frame design, the Daley is built on a trusted suspension platform with 150/140mm travel, custom tuned for each spec level. This is our go-to all mountain machine: Playful on the trails, with maximum traction through the turns and on the climbs. Ready to launch the jumps, turn and burn. No gimmicks, nothing wacky, just everything you need for days in the dirt.

FEATURES
Haro Daley alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
Marzocchi Inline R, 140mm travel shock
Marzocchi Bomber Z2 fork. 150mm travel with rail/sweep adjust, Kabolt 110 x 15mm thru axle, 44mm offset
FSA Gamma Pro cranks, 165mm, 32T chainwheel
Shimano Cues 10-speed rear derailleur
Tektro Gemini SL 4-piston hydraulic disc brakes, with 180mm rotors
Kind Shock I900 dropper post, size-specific

FRAMESET
Frame Haro Daley alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
Fork Marzocchi Bomber Z2, Rail - Sweep Adjust, Kabolt 110 x 12mm thru-axle, 44mm offset, 150mm travel

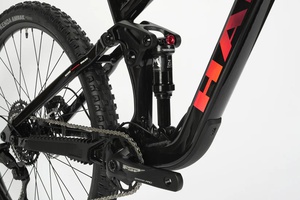

Frame Shock Marzocchi Inline R, 140mm travel
Colors Trans Black / Amber, Matte Stone Grey
Weight 37.7 lbs 16.98 kg, (L)
DRIVETRAIN

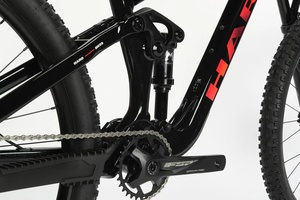

Cranks FSA Gamma Pro 165mm, 32T chainring
Pedals N/A
Chain KMC E Glide
Bottom Bracket FSA Mega EXO 73mm
Front Derailleur N/A
Rear Derailleur Shimano Cues Shadow Plus 10-speed
Derailleur Shifter Shimano Cues Rapid Fire 10-speed
Freewheel/Cassette Shimano Cues 11-48T
WHEELS
Tires CST L-CAT DK27 2.35" front & rear
Wheels/Rims Double-wall alloy 32h, I25
Hubs Alloy hub shells, 2 sealed bearings, 110x15 Front, 148x12 Rear
BRAKING SYSTEM
Brakes Tektro Gemini 2-piston hydraulic disc with 180mm rotors
Brake Levers Tektro Gemini
OTHER COMPONENTS
Grips/Tape WTB Trail II,140x30mm

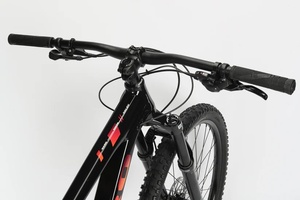

Handlebar Alloy 6061-T6 Riser bar, 800mm wide, 20mm rise, 6° back sweep, 4° upsweep
Stem 6061-T6 Forged Alloy 31.8 ID, 45mm reach
Headset FSA Orbit 1.5E ZS/ NO.57E tapered headset, 44/56mm head tube
Saddle WTB Volt Medium, w/steel rails
Seat Post Kind Shock I900 34.9 OD. Sizes: Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm
Seat Clamp 3D Forged 6061 aluminum 38.9mm ID
Extras Includes tubeless valves and sealant

SIZE M
Seat Tube (C-T) 410mm
Top Tube (Effective) 590mm
Head Tube Angle 64.5°
Seat Tube Angle 78°
Chainstay Length 445mm
BB Drop 33mm
Wheelbase 1237mm
Head Tube Length 100mm
Standover 685mm
Stack Height 610mm
Reach 460mm
Axle to Crown 561mm
Fork Offset 44mm
Stem Length
Bar Width
Crank Length
Wheel Size 29

Size Inches CM
M 5' 4" - 5' 11" 162 - 180

Product Fitment
