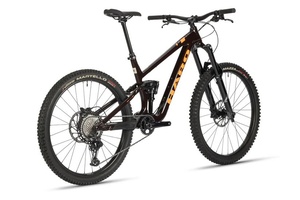

Shred-ready and built for business. The Haro Greer is refined, modern and aggressive, set up for the steep and deep with 170/160mm travel. Start with our performance alloy Greer frame, with custom tuned, progressive suspension for each spec level. The 29/27.5 "mullet" wheel configuration means business in the front and party in the back, but make no mistake, this whole bike is ready to throw down. Designed by riders for riders to plow through the chunk and send the biggest hits. Drop the seat and drop in.

FEATURES
Haro Greer alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
Marzocchi Bomber Air, A, sweep adjust, 160mm travel
Marzocchi Super Z with grip/damper, 170 mm travel
Shimano XT M8100 drivetrain
Vittoria Mazza 2.4", enduro G2.0 front & Vittoria Martello 2.4" enduro G2.0 rear tires
TRP Slate EVO 4-piston hydraulic disc brakes. 203mm rotors, front & rear
Race Face Chester 35mm rise bars and 40mm reach stem
Kind Shock I900 dropper post, size-specific
Includes tubeless valves and sealant

FRAMESET
Frame Haro Greer alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
Fork Marzocchi Super Z with grip/damper, 170 mm travel
Frame Shock Marzocchi Bomber Air, A, sweep adjust, 160mm travel
Colors Gloss Cedar Brown / Orange, Semi-Gloss Slate Blue
Weight 38.4 lbs 17.35 kg, (L)
DRIVETRAIN
Cranks Shimano XT, FC-M8120-1, 32T, 165mm, 55:CL
Pedals N/A
Chain Shimano CN-M8100 HG 12-speed
Bottom Bracket Shimano BB-MT501 BSA 68/ 73mm
Front Derailleur N/A
Rear Derailleur Shimano XT 12-speed, Shadow Plus, RD-M8100
Derailleur Shifter Shimano XT 12-speed, SL-M8100R
Freewheel/Cassette Shimano XT 12-speed CS-M8100, Hyper Glide Plus, 10-51T
WHEELS
Tires Front: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI
Wheels/Rims WTB KOM Team I35, sleeved double-wall alloy, 28H, TSC 2.0
Hubs Alloy CNC 4 sealed bearings, 110x15 front, 148x12 rear
BRAKING SYSTEM
Brakes TRP Slate EVO 4-piston hydraulic disc with 2.3mm thick, 203mm rotors, front & rear
Brake Levers TRP Slate EVO
OTHER COMPONENTS
Grips/Tape WTB Wavelength 130mm lock-on
Handlebar Race Face Chester 35mm OD, 780mm wide, 35mm rise
Stem Race Face Chester 35mm ID, 40mm reach
Headset FSA ORBIT 1.5E ZS/ NO.57E tapered, 44/56mm head tube
Saddle WTB Volt Medium, PU leather, Flex Tuned, with ABR corners
Seat Post Kind Shock I900 dropper post, 34.9mm OD. Lengths: Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm
Seat Clamp 3D forged 6061 aluminum, 38.9mm ID
Extras Includes tubeless valves and sealant

SIZE S M L XL
Seat Tube (C-T) 361mm 410mm 448mm 473mm
Top Tube (Effective) 561mm 593mm 620mm 646mm
Head Tube Angle 63.8° 63.8° 63.8° 63.8°
Seat Tube Angle 78° 78° 78° 78°
Chainstay Length 435mm 435mm 435mm 435mm
BB Drop 30mm 30mm 30mm 30mm
Wheelbase 1210mm 1244mm 1273mm 1303mm
Head Tube Length 90mm 100mm 110mm 120mm
Standover 697mm 701mm 714mm 714mm
Stack Height 615mm 624mm 633mm 642mm
Reach 430mm 460mm 485mm 510mm
Axle to Crown 584mm 584mm 584mm 584mm
Fork Offset 44mm 44mm 44mm 44mm
Stem Length
Bar Width
Crank Length
Wheel Size 29F / 27.5R 29F / 27.5R 29F / 27.5R 29F / 27.5R

Size Inches CM
XL 6' - 6' 5" 180 - 196
