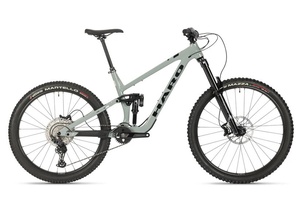

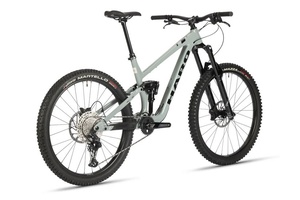

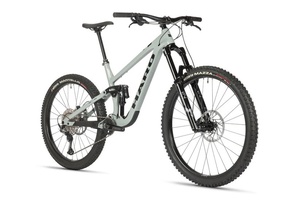

Shred-ready and built for business. The Haro Greer is refined, modern and aggressive, set up for the steep and deep with 170/160mm travel. Start with our performance alloy Greer frame, with custom tuned, progressive suspension for each spec level. The 29/27.5 "mullet" wheel configuration means business in the front and party in the back, but make no mistake, this whole bike is ready to throw down. Designed by riders for riders to plow through the chunk and send the biggest hits. Drop the seat and drop in.

FEATURES
Haro Greer alloy full-suspension alloy frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
Marzocchi Inline shock with rebound and dampening adjustment, 160mm travel
Marzocchi Bomber Z2, Rail - Sweep Adjust, Kabolt 110 x 15mm thru-axle, 44mm offset, 170mm travel
Shimano Deore M6100 drivetrain
Vittoria Mazza 2.4", enduro G2.0 front & Vittoria Martello 2.4" enduro G2.0 rear tires
WTB KOM Team I35, sleeved double-wall alloy rims, 28H
Tektro Gemini SL 4-piston hydraulic disc brakes, with 2.3mm rotors, 203mm front & rear
WTB Wavelength 130mm lock-on grips
Kind Shock I900 dropper post, size specific
Includes tubeless valves and sealant

FRAMESET
Frame Haro Greer alloy full-suspension alloy frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
Fork Marzocchi Bomber Z2, Rail - Sweep Adjust, Kabolt 110 x 15mm thru-axle, 44mm offset, 170mm travel
Frame Shock Marzocchi Inline with rebound and dampening adjustment, 160mm travel
Colors Gloss Cedar Brown / Orange, Semi-Gloss Slate Blue
Weight 38.14 lbs 17.63 kg, (L)
DRIVETRAIN
Cranks Shimano Deore FC-M6120-1, 165mm 30T chainring
Pedals N/A
Chain KMC X12
Bottom Bracket Shimano BB-MT501 BSA 68/73mm
Front Derailleur N/A
Rear Derailleur Shimano Deore 12-speed, RD-M6100 Shadow Plus
Derailleur Shifter Shimano Deore Rapid Fire, SL-M6100-R
Freewheel/Cassette Shimano 12-speed CS-M6100-12, Hyper Glide Plus, 10-51T
WHEELS
Tires Front: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI
Wheels/Rims WTB KOM Team I35, sleeved double-wall alloy, 28H, TSC 2.0
Hubs Alloy CNC 4 sealed bearings, 110x15 front axle, 148x12 rear axle
BRAKING SYSTEM
Brakes Tektro Gemini SL 4-piston hydraulic disc, with 2.3mm thick rotors, 203mm front & rear
Brake Levers Tektro Gemini
OTHER COMPONENTS
Grips/Tape WTB Wavelength 130mm lock-on
Handlebar Race Face Chester 35mm OD, 780mm wide, 35mm rise
Stem Race Face Chester, 35mm ID, 40mm reach
Headset FSA Orbit 1.5E ZS/ NO.57E tapered headset, 44/56mm head tube
Saddle WTB Volt Medium, w/steel rails
Seat Post Kind Shock I900 dropper post, 34.9 OD. Sizes: Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm
Seat Clamp 3D Forged 6061 aluminum 38.9mm ID
Extras Includes tubeless valves and sealant

SIZE S
Seat Tube (C-T) 361mm
Top Tube (Effective) 561mm
Head Tube Angle 63.8°
Seat Tube Angle 78°
Chainstay Length 435mm
BB Drop 30mm
Wheelbase 1210mm
Head Tube Length 90mm
Standover 697mm
Stack Height 615mm
Reach 430mm
Axle to Crown 584mm
Fork Offset 44mm
Stem Length
Bar Width
Crank Length
Wheel Size 29F / 27.5R

Size Inches CM
S 5" - 5' 6" 153 - 166
