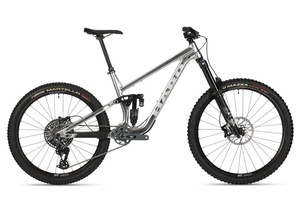

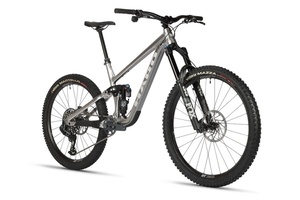

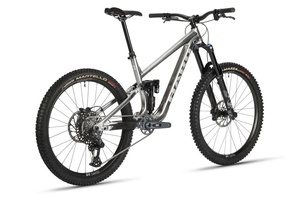

Get raw! During the R&D phase of the new Haro Greer alloy full-suspension MTB, the overwhelming response was that we should offer a production version of the raw aluminum frame. We answered that call with the limited edition Greer Raw LTD 1 and LTD 2. The anodized raw finish over the burnished surface and etched detail looks clean, fast and ready to rip. Plus, it comes in two premium builds with Fox suspension. The Greer Alloy Raw LTD 1 & Greer Alloy Raw LTD 2 are available now in limited quantities.

FEATURES
Haro Greer alloy full-suspension frame with raw anodized finish, 1-1/8" - 1-1/5" Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger
Fox Float X2 Performance Elite shock, 160mm travel
Fox Float 38 Performance Elite with Grip X, 170mm travel
SRAM GX Eagle drivetrain
DT Swiss M 1900 wheel set
Vittoria Mazza 2.4", enduro G2.0 front & Vittoria Martello 2.4" enduro G2.0 rear tires
TRP DH-R EVO 4-piston hydraulic disc brakes with 203mm rotors, front & rear
Race Face Turbine bars & stem
Kind Shock LEV Integra dropper post, size specific
Includes tubeless valves and sealant

FRAMESET
Frame Haro Greer alloy full-suspension frame with raw anodized finish, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
Fork Fox Float 38 Performance Elite with Grip X, 170mm travel
Frame Shock Fox Float X2 Performance Elite, 160mm travel
Colors Raw
Weight 38.1 lbs 17.26 kg, (L)
DRIVETRAIN
Cranks SRAM GX Eagle T-Type 165mm, Q174, CL:55
Pedals N/A
Chain SRAM GX Eagle T-Type 12-speed
Bottom Bracket SRAM DUB BSA 73mm wide
Front Derailleur N/A
Rear Derailleur SRAM GX AXS T-Type, 12-speed
Derailleur Shifter SRAM AXS POD right bridge
Freewheel/Cassette SRAM AXS 1275 T-Type, 10-52T
WHEELS
Tires Front: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI
Wheels/Rims DT SWISS E 1900 Spline wheel set
BRAKING SYSTEM
Brakes TRP DH-R EVO 4-piston hydraulic disc with 2.3mm thick, 203mm rotors, front & rear
Brake Levers TRP DH-R EVO
OTHER COMPONENTS
Grips/Tape WTB Wavelength 130mm lock-on
Handlebar Race Face MY25 Turbine, 35mm OD, 40mm rise, 800mm wide
Stem Race Face Turbine R, 35mm ID, 40mm reach
Headset FSA ORBIT 1.5E ZS/ NO.57E tapered, 44/56mm head tube
Saddle WTB Volt Medium PU leather, flex-tuned, chromoly rails, with ABR corners
Seat Post Kind Shock LEV Integra dropper, 34.9mm OD, Sizes: Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm
Seat Clamp 3D Forged 6061 aluminum 38.9mm ID
Extras Includes tubeless valves and sealant

SIZE M
Seat Tube (C-T) 410mm
Top Tube (Effective) 593mm
Head Tube Angle 63.8°
Seat Tube Angle 78°
Chainstay Length 435mm
BB Drop 30mm
Wheelbase 1244mm
Head Tube Length 100mm
Standover 701mm
Stack Height 624mm
Reach 460mm
Axle to Crown 584mm
Fork Offset 44mm
Stem Length
Bar Width
Crank Length
Wheel Size 29F / 27.5R

Size Inches CM
M 5'4" - 5' 11" 162 - 180
