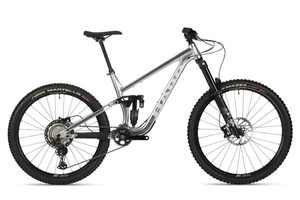

Get raw! During the R&D phase of the new Haro Greer alloy full-suspension MTB, the overwhelming response was that we should offer a production version of the raw aluminum frame. We answered that call with the limited edition Greer Raw LTD 1 and LTD 2. The anodized raw finish over the burnished surface and etched detail looks clean, fast and ready to rip. Plus, it comes in two premium builds with Fox suspension. The Greer Alloy Raw LTD 1 & Greer Alloy Raw LTD 2 are available now in limited quantities.

FEATURES
Haro Greer alloy full-suspension frame with raw anodized finish, 1-1/8" - 1-1/5" Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger

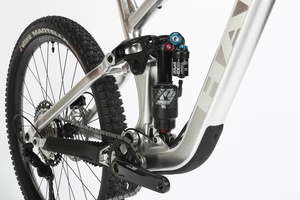

Fox Float X2 Performance Elite shock, 160mm travel
Fox Float 38 Performance Elite with Grip X, 170mm travel
Shimano XT drivetrain
DT Swiss M 1900 wheel set
Vittoria Mazza 2.4", enduro G2.0 front & Vittoria Martello 2.4" enduro G2.0 rear tires
TRP Trail EVO 4-piston hydraulic disc with 203mm rotors, front & rear
Race Face Turbine bars & Aeffect R stem
Kind Shock Rage-I dropper post, size specific

FRAMESET
Frame Haro Daley Carbon full-suspension frame with raw anodized finish, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
Fork Fox Float 38 Performance Elite with Grip X, 170mm travel
Frame Shock Fox Float X2 Performance Elite shock, 160mm travel
Colors Raw
Weight 38.9 lbs 17.49 kg, (L)
DRIVETRAIN
Cranks Shimano XT, FC-M8120-1, 165mm, 32T chainring, 55:CL
Pedals N/A
Chain Shimano CN-M8100 HG 12-speed
Bottom Bracket Shimano BB-MT501 BSA 68/73mm
Front Derailleur N/A
Rear Derailleur Shimano XT 12-speed, Shadow Plus, RD-M8100
Derailleur Shifter Shimano XT 12-speed, SL-M8100R
Freewheel/Cassette Shimano XT 12-speed CS-M8100, Hyper Glide Plus, 10-51T
WHEELS
Tires Front: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI
Wheels/Rims DT Swiss M 1900 wheel set
BRAKING SYSTEM
Brakes TRP Trail EVO 4-piston hydraulic disc with 2.3mm thick, 203mm rotors, front & rear
Brake Levers TRP Trail EVO
OTHER COMPONENTS
Grips/Tape WTB Wavelength 130mm lock-on

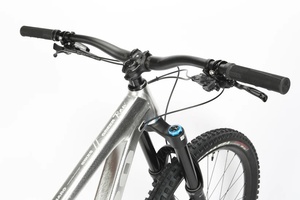

Handlebar Race Face MY25 Turbine, 35mm OD, 40mm rise, 800mm wide
Stem Race Face Aeffect R, 35mm ID, 40mm reach
Headset FSA ORBIT 1.5E ZS/ NO.57E tapered, 44/56mm head tube
Saddle WTB Volt Medium PU leather, flex-tuned, chromoly rails, with ABR corners
Seat Post Kind Shock Rage-I dropper, 34.9OD, sizes: Small 150mm, Medium 170mm, Large 190mm, X-Large 190MM
Seat Clamp 3D Forged 6061 aluminum 38.9mm ID
Extras Includes tubeless valves and sealant

SIZE S M L XL
Seat Tube (C-T) 361mm 410mm 448mm 473mm
Top Tube (Effective) 561mm 593mm 620mm 646mm
Head Tube Angle 63.8° 63.8° 63.8° 63.8°
Seat Tube Angle 78° 78° 78° 78°
Chainstay Length 435mm 435mm 435mm 435mm
BB Drop 30mm 30mm 30mm 30mm
Wheelbase 1210mm 1244mm 1273mm 1303mm
Head Tube Length 90mm 100mm 110mm 120mm
Standover 697mm 701mm 714mm 714mm
Stack Height 615mm 624mm 633mm 642mm
Reach 430mm 460mm 485mm 510mm
Axle to Crown 584mm 584mm 584mm 584mm
Fork Offset 44mm 44mm 44mm 44mm
Stem Length
Bar Width
Crank Length
Wheel Size 29F / 27.5R 29F / 27.5R 29F / 27.5R 29F / 27.5R

Size Inches CM
S 5" - 5' 6" 153 - 166

Product Fitment
