Kids Bike Flightline 20 Green Haro Bikes
14025

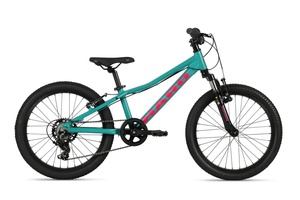

Haro Bikes Kids Bicycle Flightline 20 Matte Green
Thanks to its lower stand-over height frame and 20" wheelset, the Flightline 20 is perfect for adventurous youngsters who love to ride but aren't quite ready for the larger 24" or 26" wheel-sizes yet. The FL 20 features Haro's low profile X6 alloy frame with a ton of stand-over clearance. Bumps don't stand a chance thanks to its suspension fork with 35mm of travel. The FL 20 features a new 1x7-speed drive-train with a single chainring and Revo shifter to make it easier to switch gears.
FEATURES
Flightline X6 Series aluminum frame
HL 410E 1-1/8" threadless suspension fork w/ 30mm travel
Aluminum 3-pc 28T crankset w/ double chainguard
Shimano Tourney 7spd Rear Derailleur
Promax TX-121 V-Brakes W Short reach levers
Alloy riser, 620mmW, 9° back sweep, 25mm rise, ø31.8
FRAMESET
Frame Flightline X6 Series aluminum frame
Fork HL 410E 1-1/8" threadless suspension fork w/ 30mm travel
Colors Ink blue, Matte Green
DRIVETRAIN

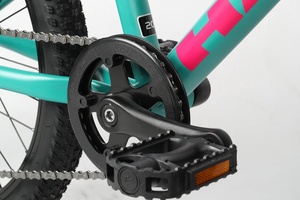

Cranks Aluminum 3-pc 28T crankset w/ double chainguard
Pedals MTB nylon body 9/16"
Chain KMC Z7 GYBR, 1/2″x3/32″x90L, 7-Spd
Bottom Bracket Cartridge Bearing 68mmX119mm
Front Derailleur N/A

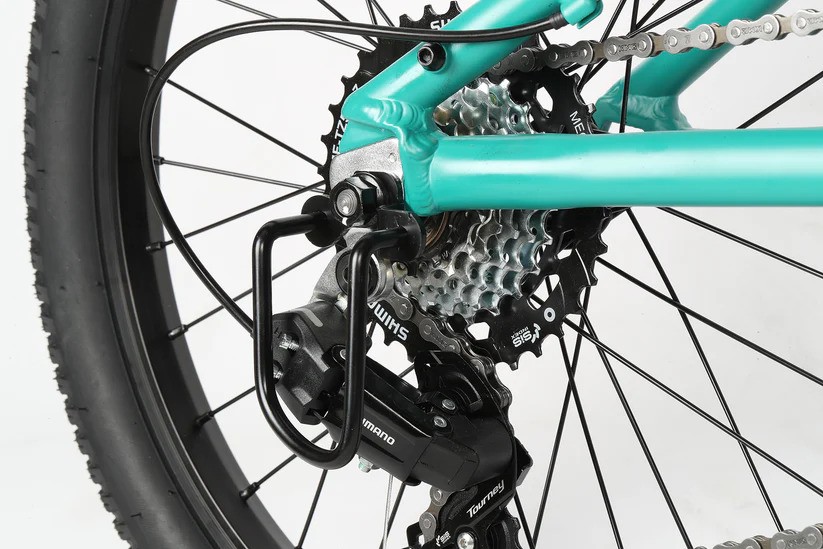

Rear Derailleur Shimano RD-TY200, Tourney 7spd

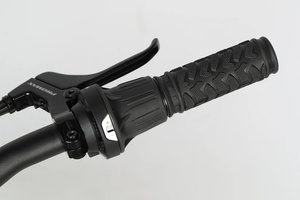

Derailleur Shifter Shimano SL-RV200 7-SPD Revo Shifter W window
Freewheel/Cassette Shimano freewheel 14-34T
WHEELS
Tires Chao Yang H-5129 20"x2.0"
Wheels/Rims Aluminum single wall 20" rims
Front Hub Steel 32H 3/8"
Rear Hub Steel 32H 3/8"
BRAKING SYSTEM

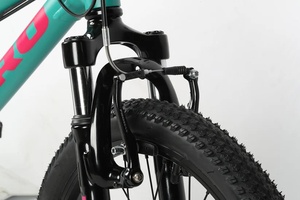

Brakes Promax TX-121 V-Brakes
Brake Levers Promax BL-81G | Short reach
OTHER COMPONENTS
Grips/Tape Krayton rubber MTB

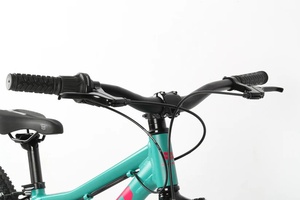

Handlebar Alloy riser, 620mmW, 9° back sweep, 25mm rise, ø31.8
Stem 1-1/8" threadless 3D Forged Alloy 45mmL, 7° rise
Headset 1-1/8" Threadless

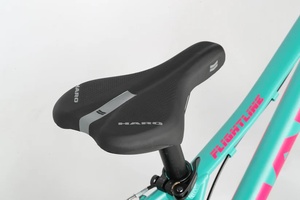

Saddle Haro Flightline Jr
Seat Post Alloy micro adjust ø27.2
Seat Clamp Alloy ø 31.8 quick release
SIZE 20
Seat Tube (C-T) 244mm (9.6")
Top Tube (Effective) 469mm (18.5")
Head Tube Angle 69°
Seat Tube Angle 71°
Chainstay Length 355mm (14")
BB Drop 0mm (0")
Wheelbase 878mm (34.6")
Head Tube Length 100mm (3.9")
Standover 523mm (20.6")
Stack Height 422mm (16.6")
Reach 324mm (12.8")
Axle to Crown 355mm (14")
Fork Offset 35mm (1.4")
Stem Length 45mm
Bar Width 620mm
Crank Length 127mm
Wheel Size 20
Size Inches CM
20 3'6 - 4'1" 107 - 125
