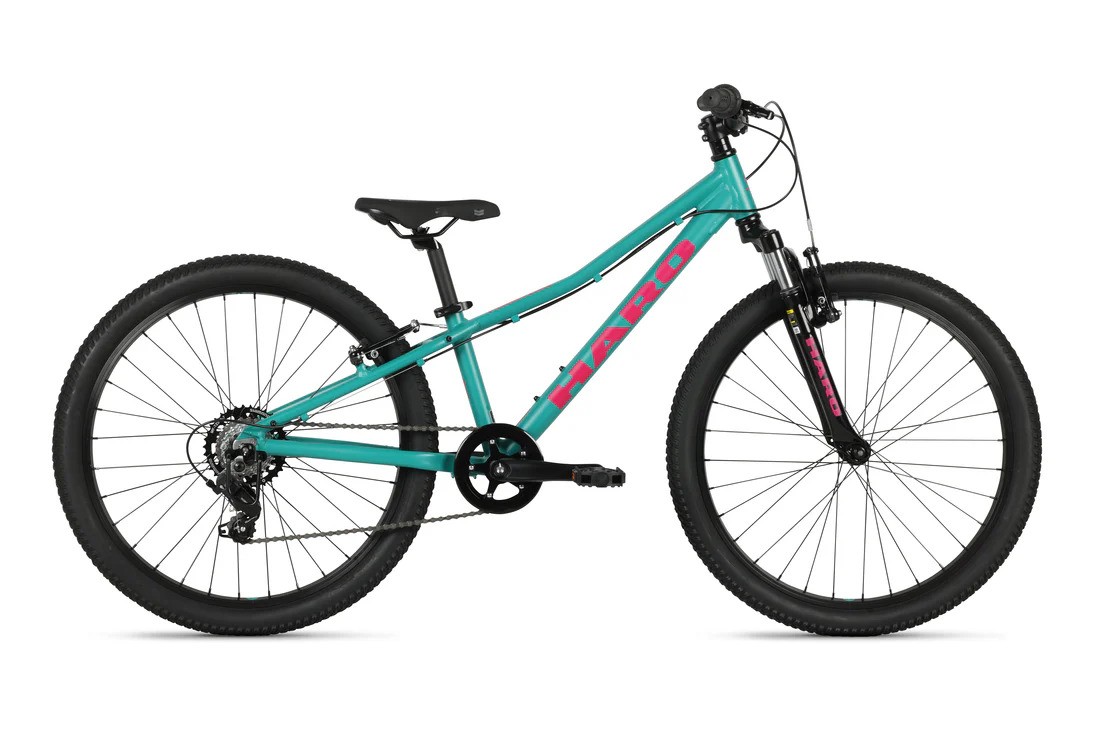

Haro Bikes Kids Bicycle Flightline 24 Matte Green
Thanks to its lower stand-over height frame and 24" wheelset, the Flightline 24 is perfect for adventurous kids who love to ride but aren't quite ready for the larger sizes yet. The FL 24 features Haro's FL3G low profile X6 alloy frame with a ton of stand-over clearance. Bumps don't stand a chance thanks to its suspension fork with 40mm of travel. The FL 24 features a new 1x7-speed drive-train with a single chainring to make it easier to switch gears.
FEATURES
Flightline X6 Series aluminum frame
HL 410E 1-1/8" threadless suspension fork w/ 40mm travel
Aluminum 3-pc 28T crankset w/ double chainguard
Shimano Tourney 7spd Rear Derailleur
Promax TX-121 V-Brakes W Short reach levers
Alloy riser, 620mmW, 9° back sweep, 25mm rise, ø31.8
FRAMESET
Frame Flightline X6 Series aluminum frame
Fork HL 410E 1-1/8" threadless suspension fork w/ 40mm travel
Colors Ink blue, Matte Green, Gloss Black
DRIVETRAIN

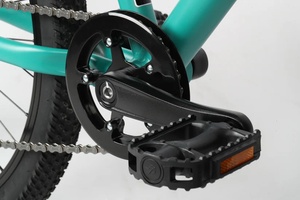

Cranks Aluminum 3-pc 32T crankset w/ double chainguard
Pedals MTB nylon body 9/16"
Chain KMC Z7 GYBR, 1/2″x3/32″x90L, 7-Spd
Bottom Bracket Cartridge Bearing 68mmX119mm
Front Derailleur N/A
Rear Derailleur Shimano RD-TY200, Tourney 7spd
Derailleur Shifter Shimano SL-RV200 7-SPD Revo Shifter W window
Freewheel/Cassette Shimano freewheel 14-34T
WHEELS
Tires Chao Yang H-5129 24"x2.10"
Wheels/Rims Aluminum single wall 20" rims
Front Hub Steel 32H 3/8"
Rear Hub Steel 32H 3/8"
BRAKING SYSTEM
Brakes Promax TX-121 V-Brakes
Brake Levers Promax BL-81G | Short reach
OTHER COMPONENTS
Grips/Tape Krayton rubber MTB

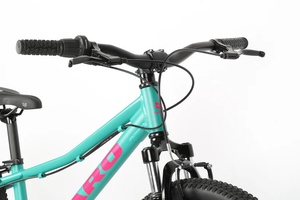

Handlebar Alloy riser, 620mmW, 9° back sweep, 25mm rise, ø31.8
Stem 1-1/8" threadless 3D Forged Alloy 45mmL, 7° rise
Headset 1-1/8" Threadless

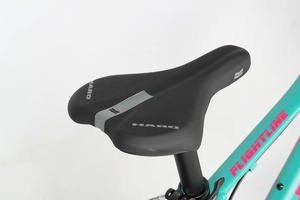

Saddle Haro Flightline Jr
Seat Post Alloy micro adjust ø 27.2
Seat Clamp Alloy ø 31.8 quick release
SIZE 24
Seat Tube (C-T) 271mm (10.7")
Top Tube (Effective) 515mm (20.3")
Head Tube Angle 69°
Seat Tube Angle 73°
Chainstay Length 405mm (15.9")
BB Drop 30mm (1.2")
Wheelbase 984mm (38.7")
Head Tube Length 100mm (3.9")
Standover 584mm (23")
Stack Height 504mm (19.8")
Reach 361mm (14.2")
Axle to Crown 410mm (16.1")
Fork Offset 35mm (1.4")
Stem Length 45mm
Bar Width 620mm
Crank Length 152mm
Wheel Size 24
Size Inches CM
24 4' - 4'8" 122 - 142
