Bike Flightline 1 29 Black Grey Medium Haro Bikes
15211
Haro Bikes Flightline 1 29 Hardtail Bicycle Gloss Black Grey …

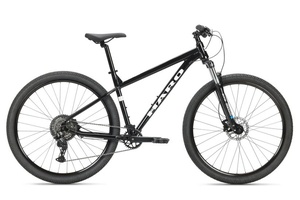

Updated and up-sized, the Flightline 1 hardtail 29er features a revamped alloy frame with internal cable routing and a tapered head tube matched with a SunTour XCE28 100mm suspension fork. High-performance spec like a Shimano 8-speed Essa drivetrain and hydraulic disc brakes with 160mm rotors, matched with durable double-wall alloy rims put this bike at the front of the lineup for an affordable, ride-able MTB. Compatible with an aftermarket dropper post with internal cable routing, it can be fine-tuned to your personal preferences. Enjoy the ride!
FEATURES
New Haro Flightline 6061-T6 Aluminum, with internal cable routing and tapered head tube. Frame can be upgraded with aftermarket dropper post (with internal routing) and tapered front fork.
SR Suntour XCE28 100mm Suspension Fork
Prowheel 3pc, square tapered Alloy crank arm with stamped 32T chainring
Shimano Essa 1 x 8 speed, 11-40T cassette
Double Wall I25 alloy rims with quick-release axles
Aoyang Hydraulic Disc Brakes with 160mm Rotors
FRAMESET
Frame New Haro Flightline 6061-T6 Aluminum, with internal cable routing and tapered steerer tube.
Fork SR Suntour XCE28 100mm Suspension Fork
Colors Gloss Black, Matte Green
DRIVETRAIN
Cranks Prowheel 3pc, square tapered Alloy crank arm with stamped 32T chainring
Pedals FPD Nylon Platform 9/16"
Chain KMC X8 Chain
Bottom Bracket Sealed Cartridge 73mm
Front Derailleur

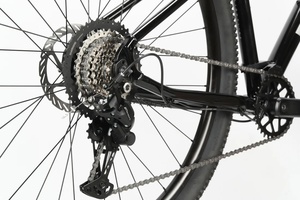

Rear Derailleur Shimano Essa 8spd

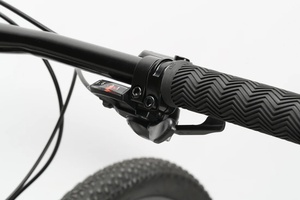

Derailleur Shifter Shimano Essa 8spd Rapidfire with optical window
Freewheel/Cassette Shimano Essa 8spd 11-40T
WHEELS
Tires Excell E610 29x2.1"
Wheels/Rims Double Wall I25
Hubs Alloy quick release
BRAKING SYSTEM

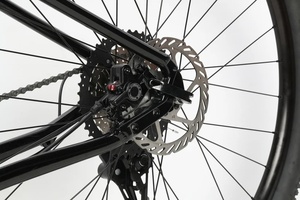

Brakes Aoyang Hydraulic Disc with 160mm Rotors
Brake Levers Aoyang 2.5 Finger
OTHER COMPONENTS
Grips/Tape DDK TPR 130mm

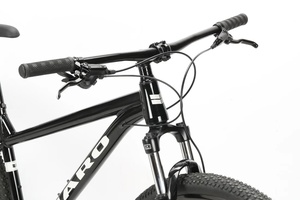

Handlebar 780mm W, 15mm Rise, ø31.8, 9° Back sweep, 5° Upsweep
Stem Alloy 3D forged 60mm Reach
Headset Neco 1-1/8" Threadless
Saddle DDK MTB
Seat Post Alloy ø31.6 Micro adjust
Seat Clamp Alloy ø31.6 Quick Release
SIZE M
Seat Tube (C-T) 457mm
Top Tube (Effective) 610mm
Head Tube Angle 69°
Seat Tube Angle 72.5°
Chainstay Length 450mm
BB Drop 64mm
Wheelbase 1136mm
Head Tube Length 100mm
Standover 740mm
Stack Height
Reach 425mm
Axle to Crown 515mm
Fork Offset 44mm
Stem Length
Bar Width
Crank Length
Wheel Size
Size Inches CM
M 5'7" - 6' 170 - 182.5
