Kids Bike Shredder 14 Red Haro Bikes
23062

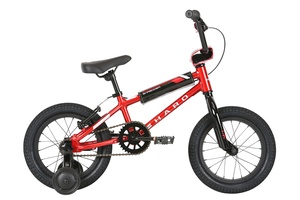

Haro Bikes Kids Bicycle Shredder 14 Metallic Red
(pic is …
The Shredder 14 is designed around a low profile alloy frame which is both light weight and durable. Rider friendly geometry coupled with quality features
FEATURES
6061 alloy Shredder lo-profile frame
1-1/8 threadless headset
28-spoke wheels with 14" alloy rims
Sure stop coaster brake and linear pull v-brake with adjustable lever
Padded Jr. seat and Jr. plastic pedals
Heavy duty training wheels and full pad set
FRAMESET
Frame Low Profile 6061 Series Alloy Frame, 15.5" Standover Height
Fork Hi-Ten 1 1/8" Threadless
Colors Black, Metallic Red
DRIVETRAIN
Cranks Steel 1-pc, 114mm
Bottom Bracket Loose Ball American BB
Sprocket 36T Steel
Gearing 36/16
Pedals Nylon, 1/2"
Chain Haro Baseline Standard Link Chain
Cassette 16t
WHEELS
Tires Haro MS5 14 x 2.3"
Front Hub Steel Shell 28h, Loose Ball
Rear Hub Steel Shell Coaster Brake, 28h, Loose Ball
Axle 3/8"
Rims 14" Alloy 28h, Single Wall
BRAKING SYSTEM
Brake Promax Alloy V-Brake & Coaster Foot Brake
Brake Lever Promax XL-378 Alloy Lever
OTHER COMPONENTS
Grips Haro Jr. Krayton
Handlebar Hi-Ten, 6.5" Rise
Stem Forged Alloy Top-Load, 38mm Ext.
Headset Threadless Loose Ball, 1 1/8"
Seat Jr. Haro Padded Adjustable
Seat Post Steel, 22.2mm
Seat Post Clamp Alloy, 25.4mm
Extras Training Wheels & Haro Padset & P type chainguard
Size 14
Head Angle 72°
Seat Angle 70°
Top Tube 14.48" (368mm)
Seat Tube 7.38" (187.5mm)
Chainstay 10.5" (267mm)
BB Height 9.45" (240mm)
Stand Over 14.9" (378mm)
Size Inches
14 3'3" - 3'7"
