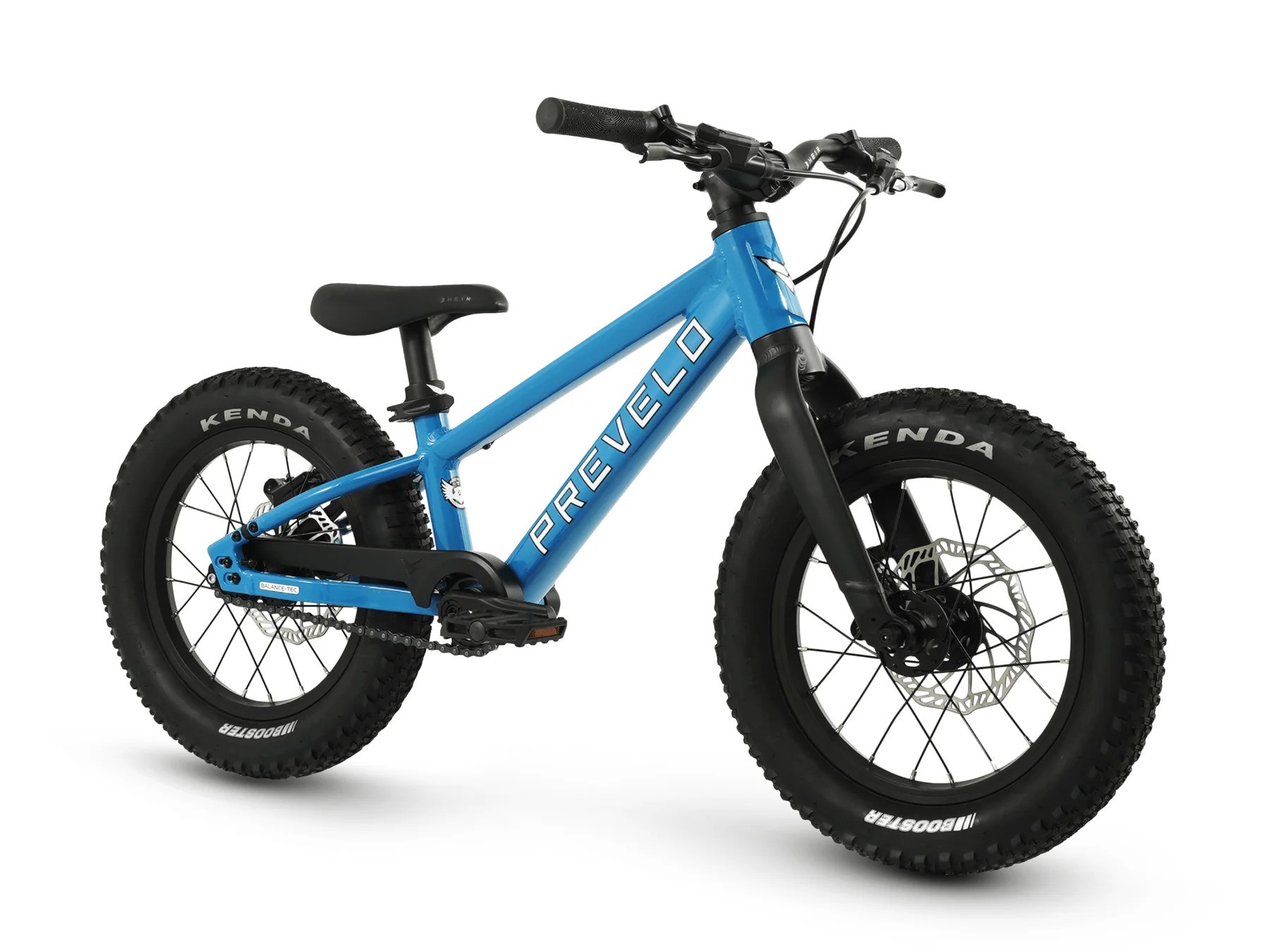

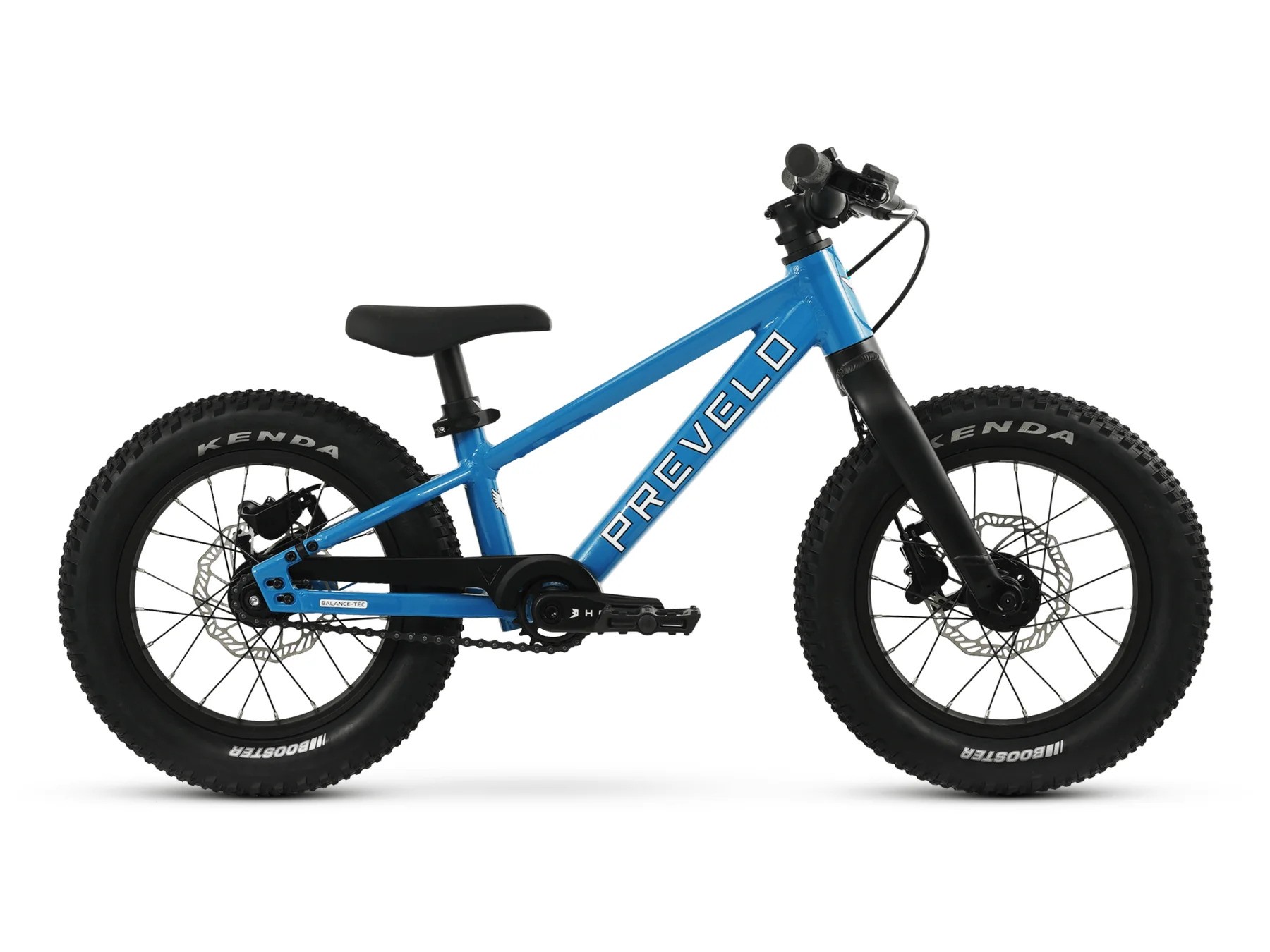

The new Zulu One builds on its legacy of innovation with significant weight reductions and groundbreaking BALANCE-TEC™ conversion system. The patent-pending BALANCE-TEC system is the first-ever balance-bike-to-pedal-bike conversion that doesn't compromise pedaling performance.
The Zulu One features:
A new smaller rear cog combined with a smaller chainring reduces weight while maintaining climbing-friendly gear ratios
Adjustable rear dropouts enable precise chain tension and wheelbase tuning
THRU-TUBE seat tube design increases fit range to accommodate growing riders
Sealed cartridge bearings throughout for superior durability
High-volume Kenda Booster tires for improved traction and ride comfort
Hydraulic disc brakes deliver category-leading control and safety
Measurements
Weight 13.5 lbs
Minimum Saddle Height 15.5 in / 395 mm
Maximum Saddle Height 25.2 in / 640 mm
Gain Ratio 3.765
Recommended Inseam 14" to 17"
Wheel Diameter 14 in
Wheelbase 26.77 in / 680 mm
Chain Stay Length 10.74 in / 273 mm
Seat Tube Angle 76°
Head Angle 66°
Effective Top Tube Length 13.0 in / 351 mm
Bottom Bracket Height 7.1 in / 182 mm
Stack 12.59 in / 320 mm
Bottom Bracket Drop 0.59 in / 15 mm
Seat Tube Length 6.3 in / 160 mm
Standover 14.2 in / 360 mm
Q factor 146mm
Reach 9.21 in / 234 mm
Components
Frame THRU-TUBE™ Lightweight 6061 Aluminum with Low Center of Gravity Trail Geometry
Fork Bladed Aluminum Legs with 1⅛" Aluminum Steer tube
Seat Clamp Prevelo TallClamp with Toolless Adjustment
Brakes Promax DSK 940 Hydraulic Disc
Freewheel / Cassette 10t 1pc driver
Crank Lightweight Aluminum 3 piece. Narrow Width, 85mm length, 146mm Q factor
Chainring 18t Aluminum
Bottom Bracket 68x113 Hollow Spindle Square Taper with Sealed Cartridge Bearings
Headset Integrated Sealed Cartridge Bearing
Rims Aluminum
Front Hub 20h 9x100 Sealed Cartridge Bearing
Rear Hub 20h 110mm Sealed Cartridge Bearing Cassette
Tires Kenda Booster 14 × 2.2
Saddle HEIR Frame Hugger™ Little Kid - Alloy Reinforced
Seat Post ⌀27.2mm alloy one-piece - Zulu One comes with two saddles and seat posts: tall and short
Handlebar HEIR 19mm Riser Bar 31.6 clamp, 520mm wide, 25mm rise, 19mm grip diameter
Stem Lightweight Aluminum 31.6, 35mm Extension
Grips HEIR 110mm wide 19mm Lock-On
Pedals Prevelo Composite Short Spindle, 9/16 Crmo Spindle
Version MK II
