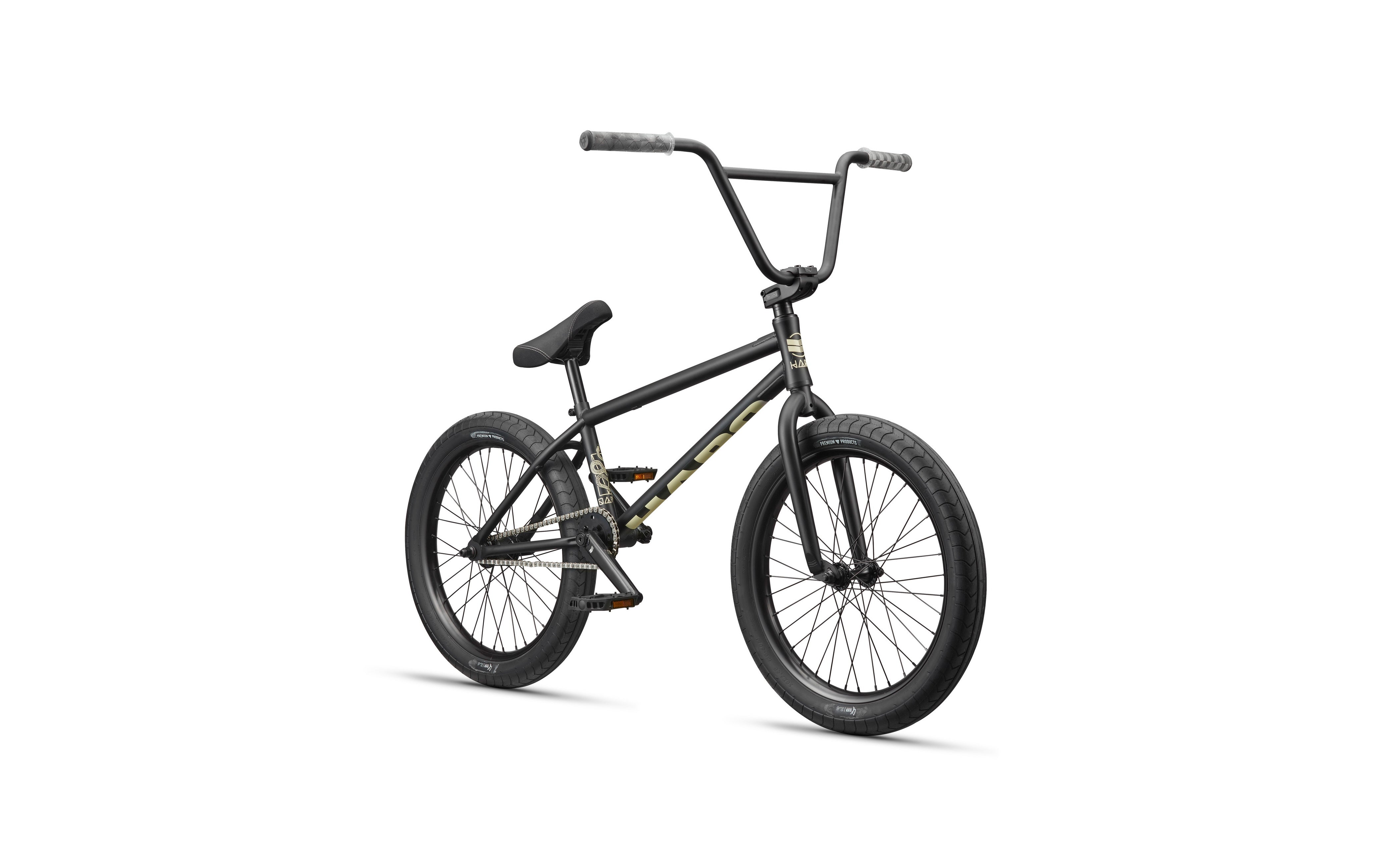

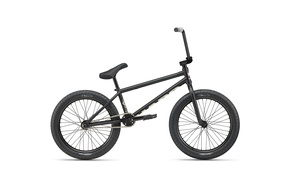

The Dana delivers pro-level street performance with Haro’s signature touch. …
| FRAMESET | |
|---|---|

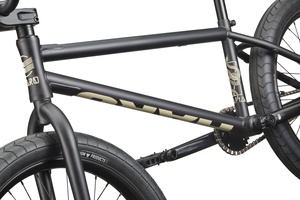

| Frame | Full chromoly construction. 20.75" top tube. Removable brake mounts. Integrated head tube. Mid bottom bracket. |
| Fork | Full chromoly with threaded steerer tube and tapered legs. 34mm offset. |

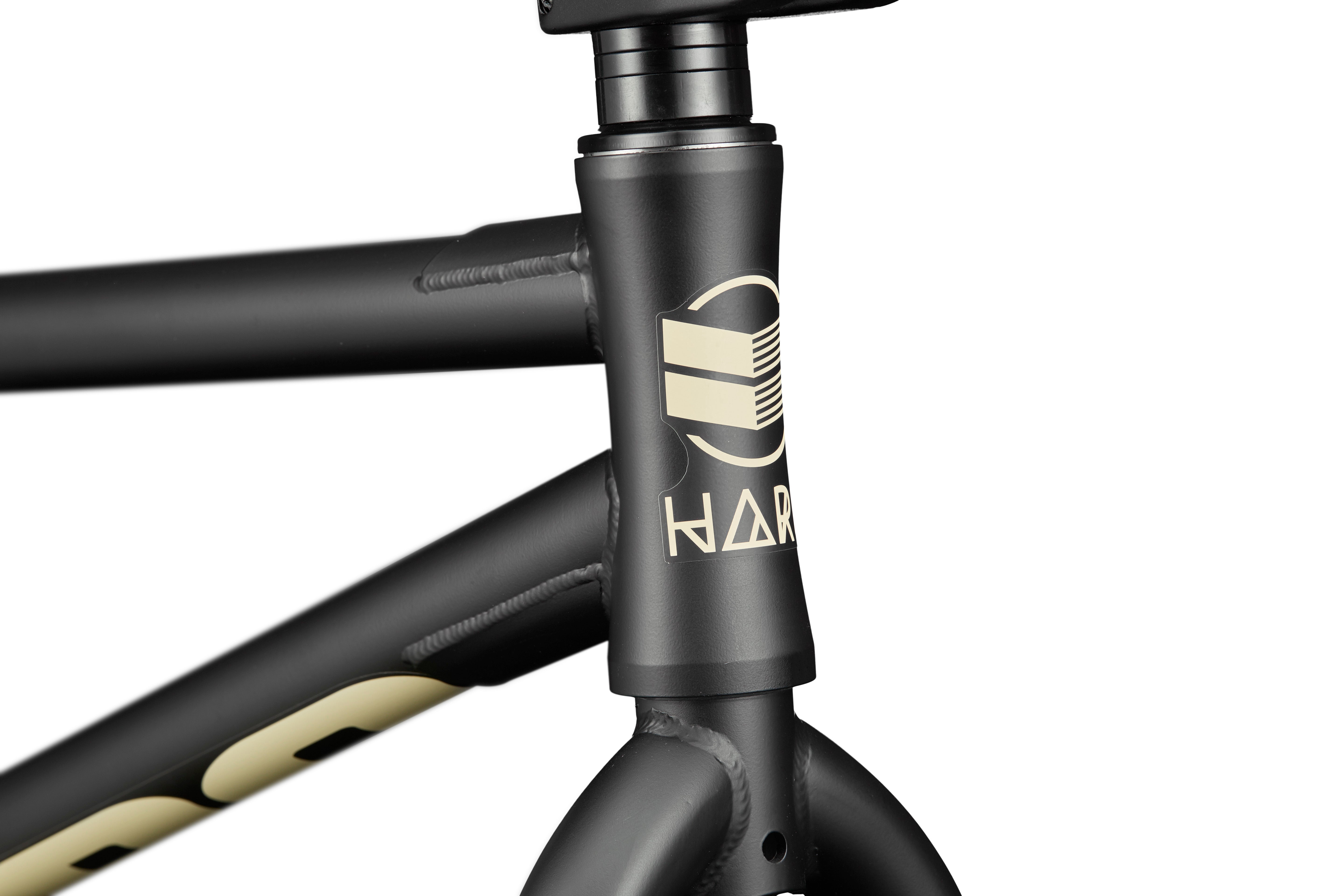

| Headset | Integrated 1-1/8" headset. |

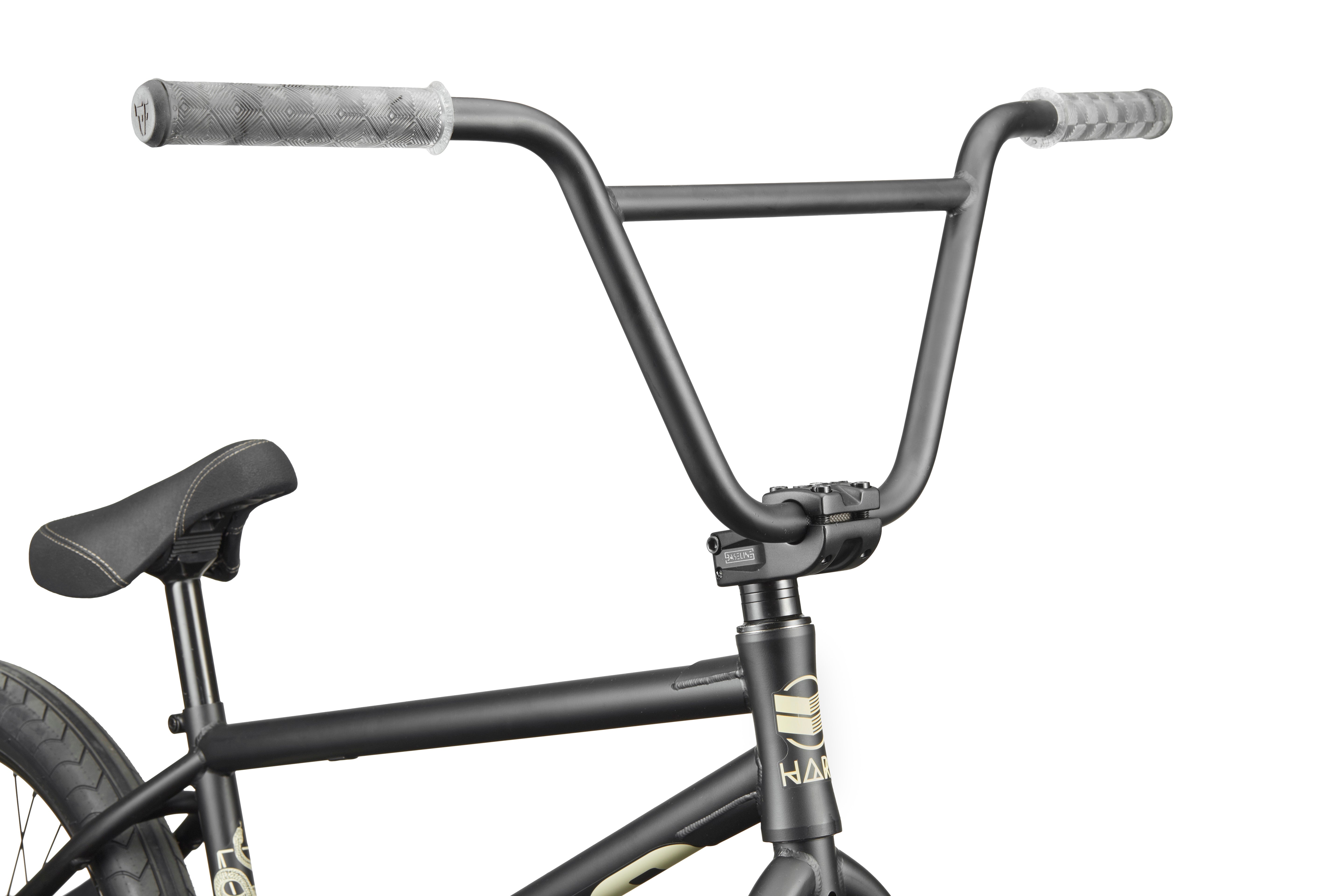

| Handlebar | Haro 9.25" rise chromoly. 12 degree back sweep. 2 degree up sweep. |

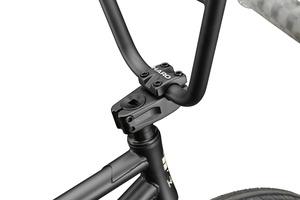

| Stem | Haro Baseline forged aluminum top load. 48mm reach. |

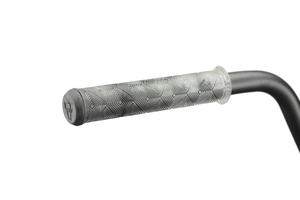

| Grip | Haro Baseline flangeless. 163mm. |

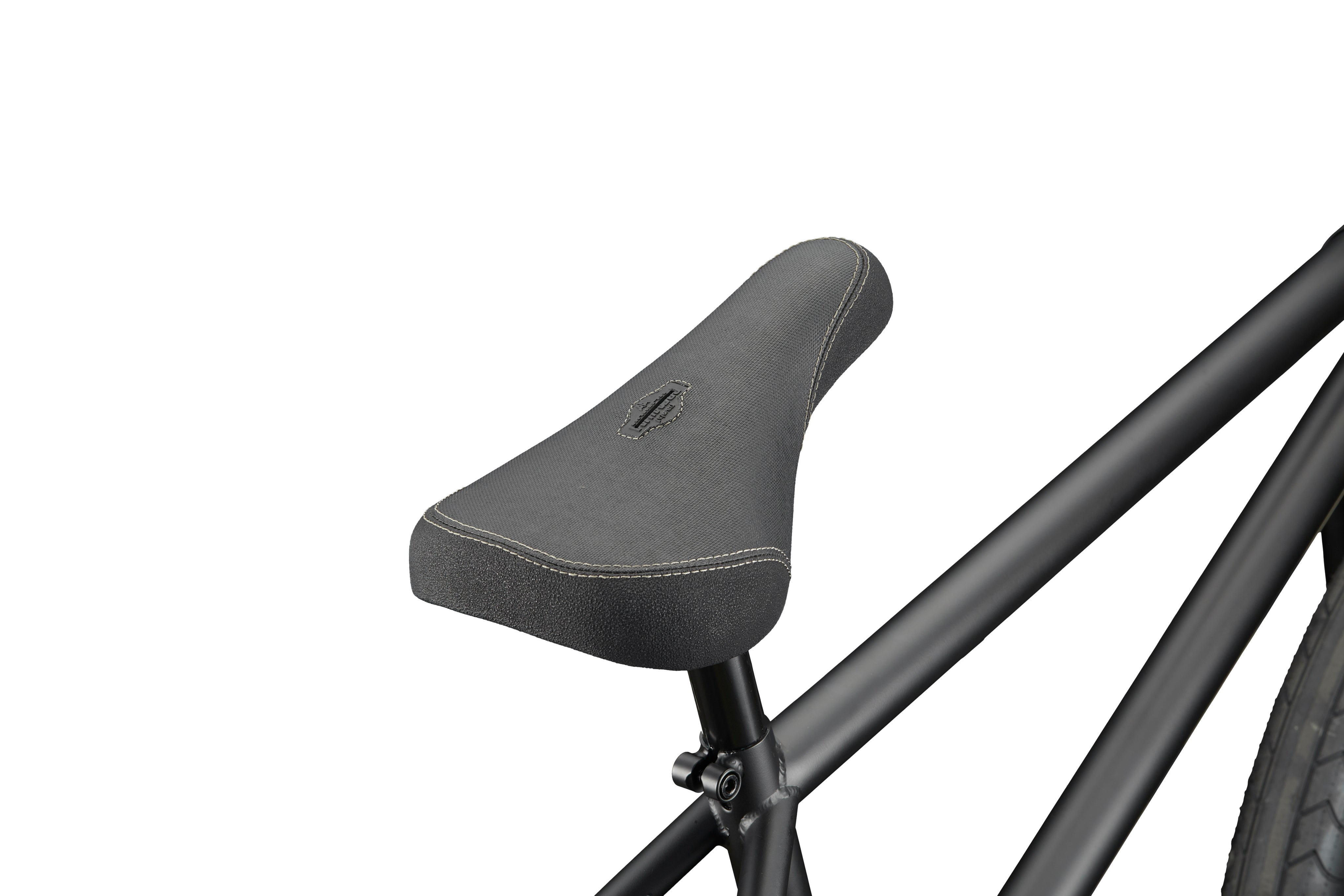

| Saddle | Haro Baseline Pivotal. |
| Seat Post | Haro Baseline Pivotal alloy. 200mm. |

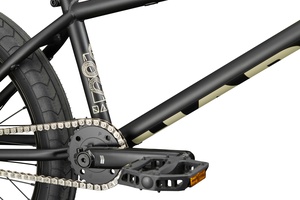

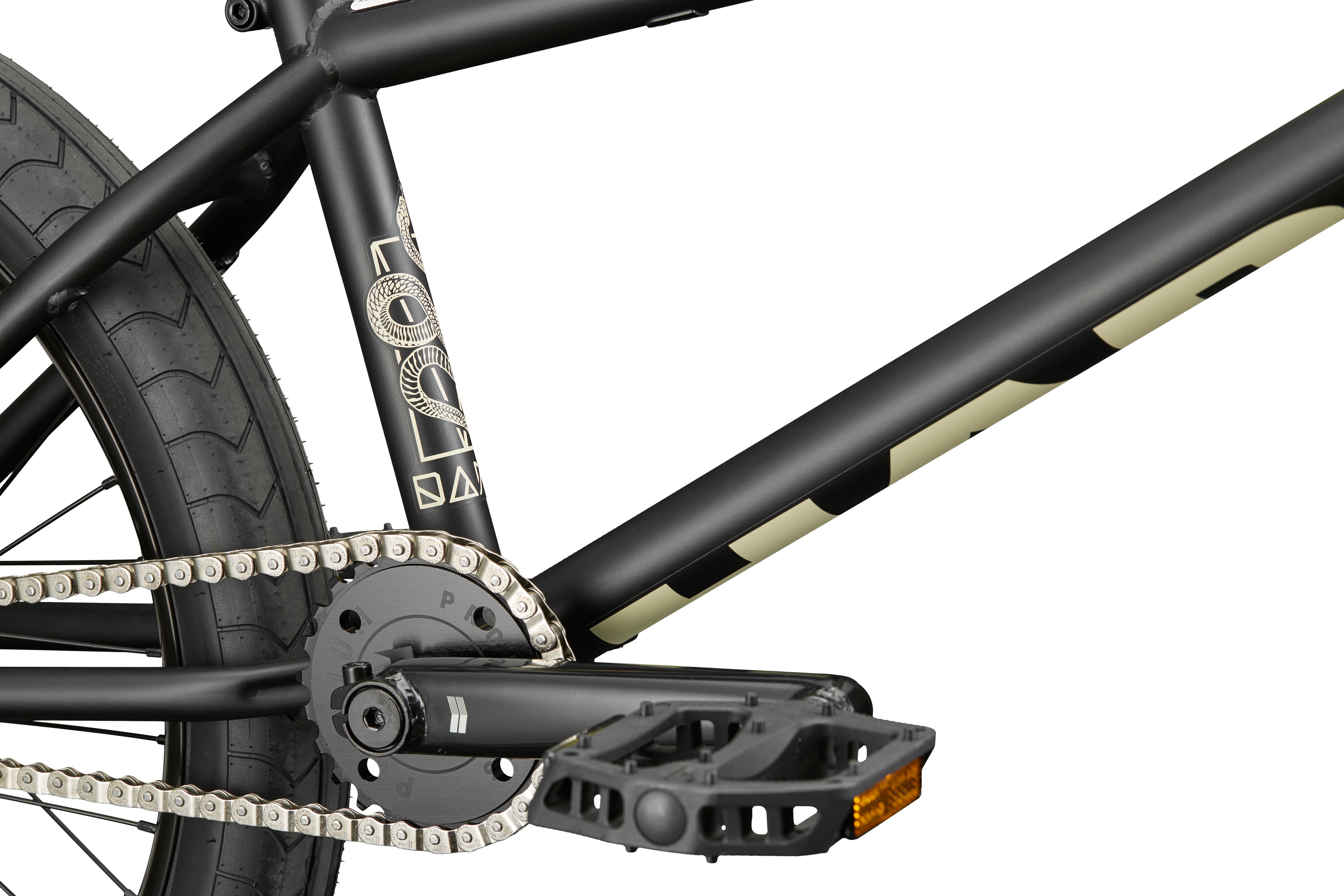

| Cranks | Haro 3-piece chromoly cranks. 170mm length. Forged 19mm spindle. |

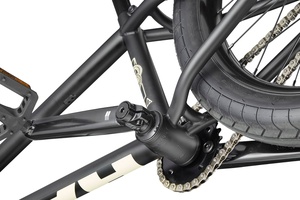

| Bottom Bracket | Sealed mid bottom bracket. |
| Sprocket | Haro CNC alloy sprocket. 25T. |
| Chain | KMC Z1 1/8" width |
| Pedals | Haro Baseline poly platform. Chromoly axles. |
| Rims | Double wall 20" alloy rims. Pinned seams. 32mm wide. 36 hole. |
| Front Hub | Alloy front hub with sealed bearings. Female 3/8" axle. |

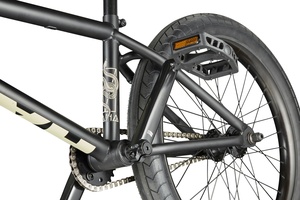

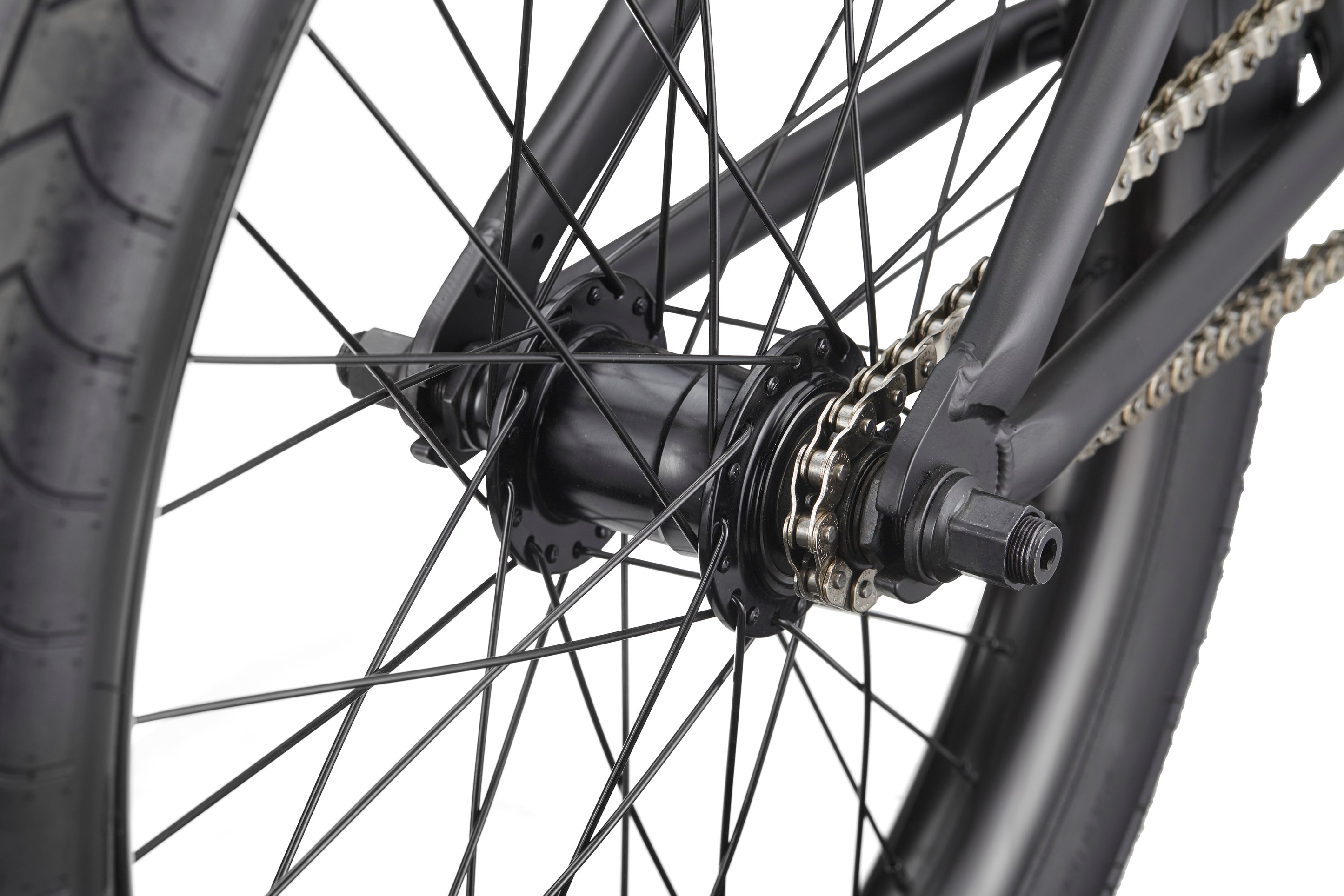

| Rear Hub | Sealed cassette rear hub. Alloy shell. 9T driver. 14mm axle. |
| Tires | Haro LaMesa 20 X 2.4" front & rear |
| Extras | Nylon sleeves with alloy core (includes 2 pegs). |
