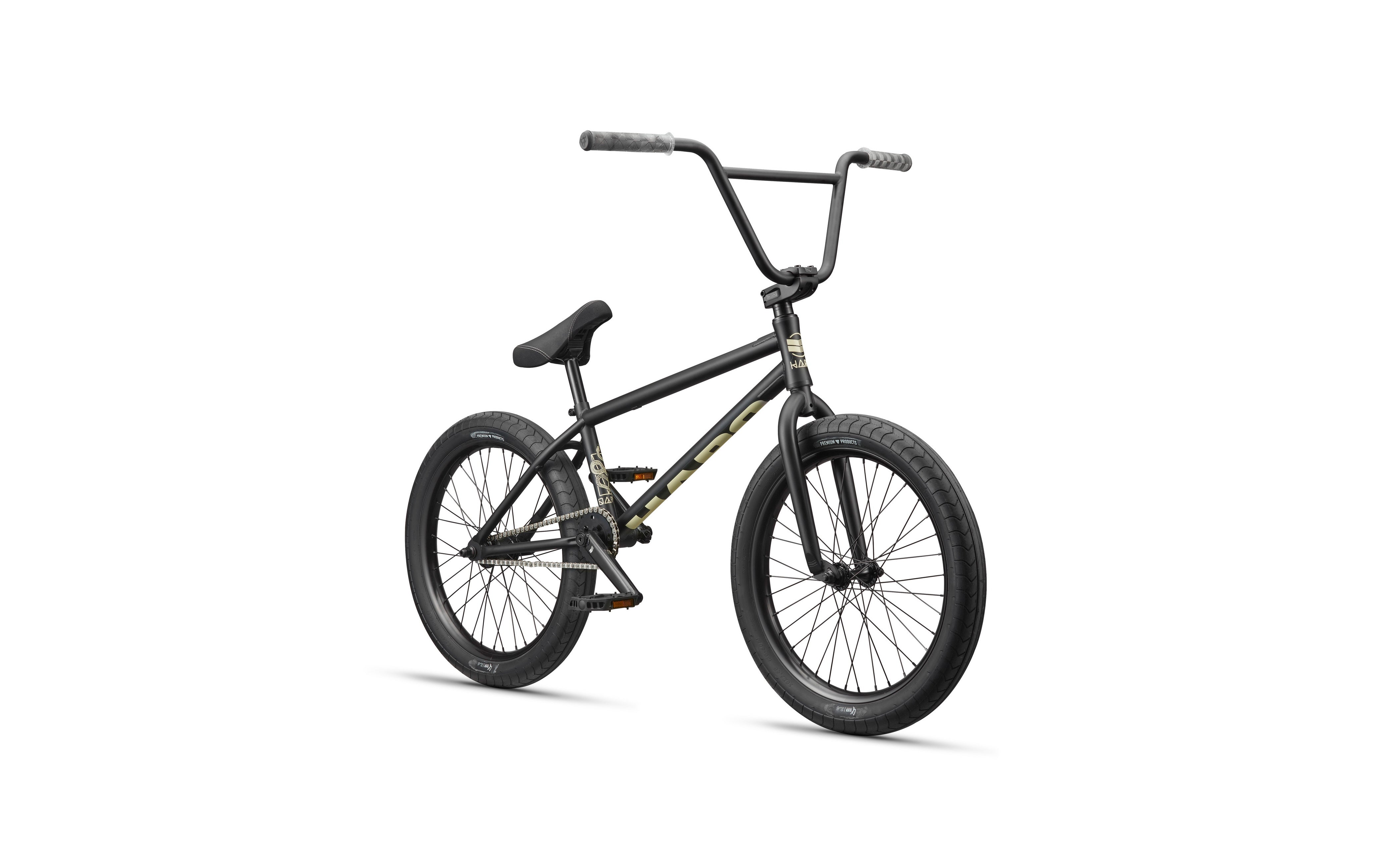

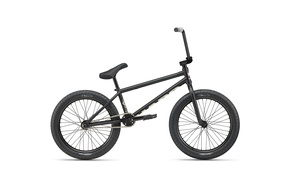

Haro Dana 20" Street BMX 20.75" TT Matte Black (Colin Colourway)

The Dana is Haro's pro-level street BMX at a more accessible price. It shares its full chromoly frame with the Hoover and comes in rider-designed colourways.

Double wall brakeless rims, a sealed cassette rear hub and a CNC alloy sprocket make it street-ready out of the box.

Key Features

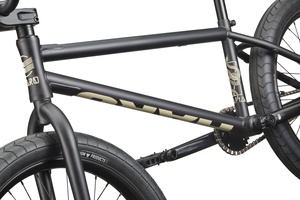

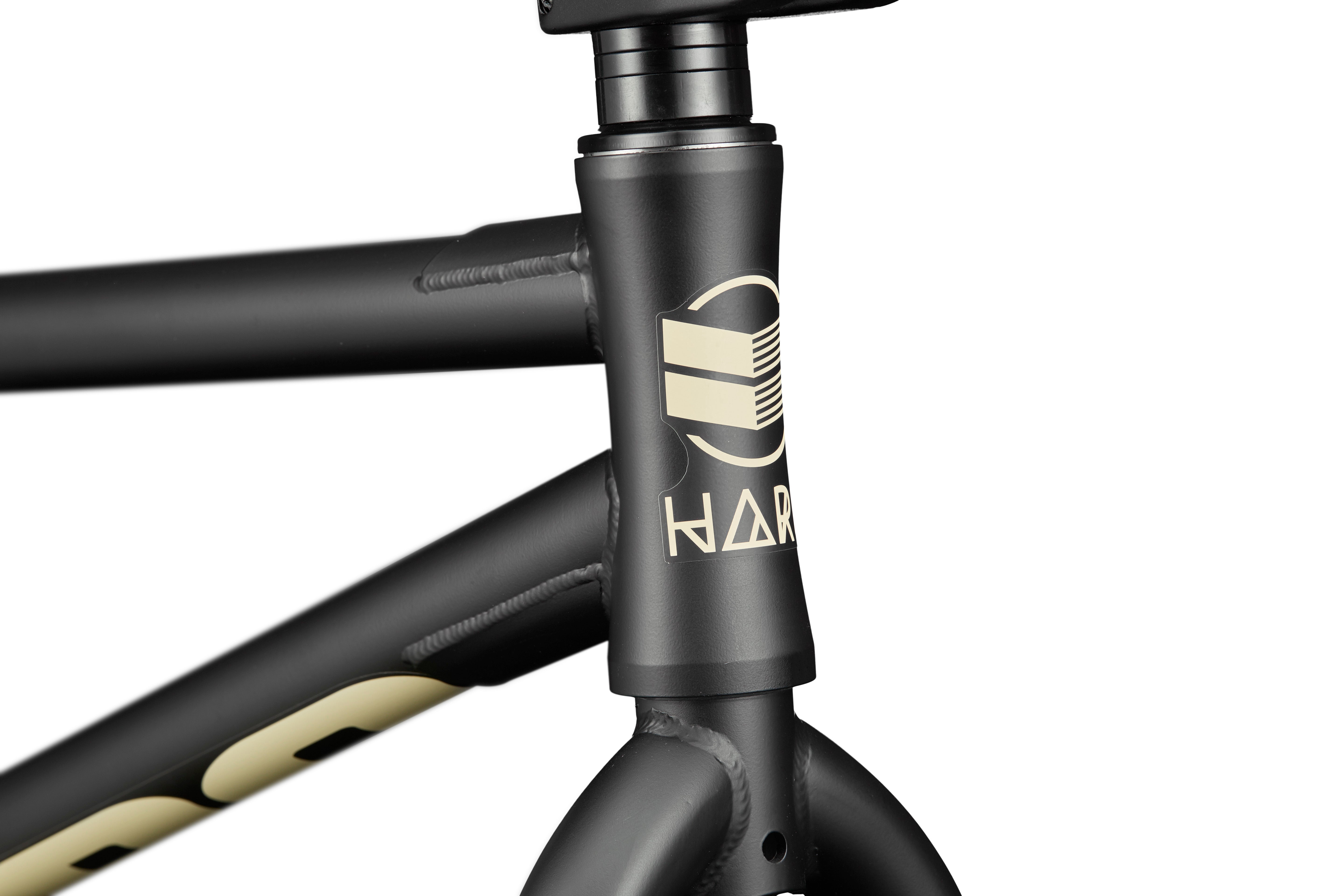

• Frame: full chromoly, 20.75" top tube, removable brake mounts, integrated head tube, mid BB


• Fork: full chromoly, threaded steerer, tapered legs, 34mm offset

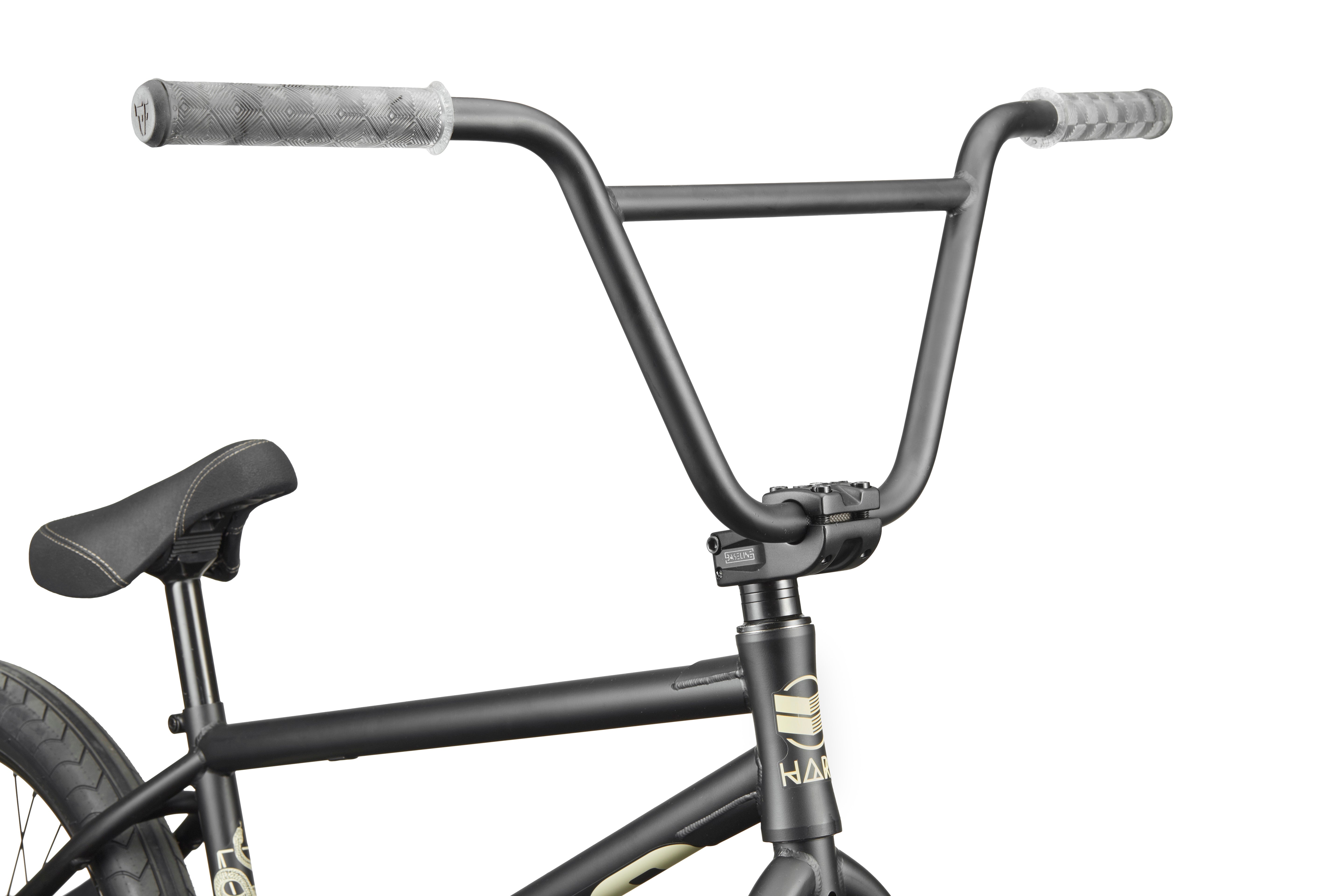

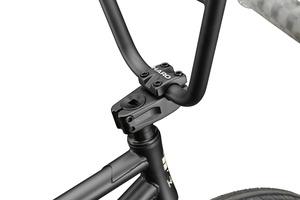

• Bars: Haro 9.25" rise chromoly, 12° back sweep, 2° up sweep


• Stem: Haro Baseline forged aluminium top load, 48mm reach

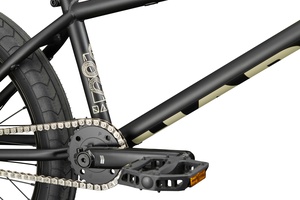

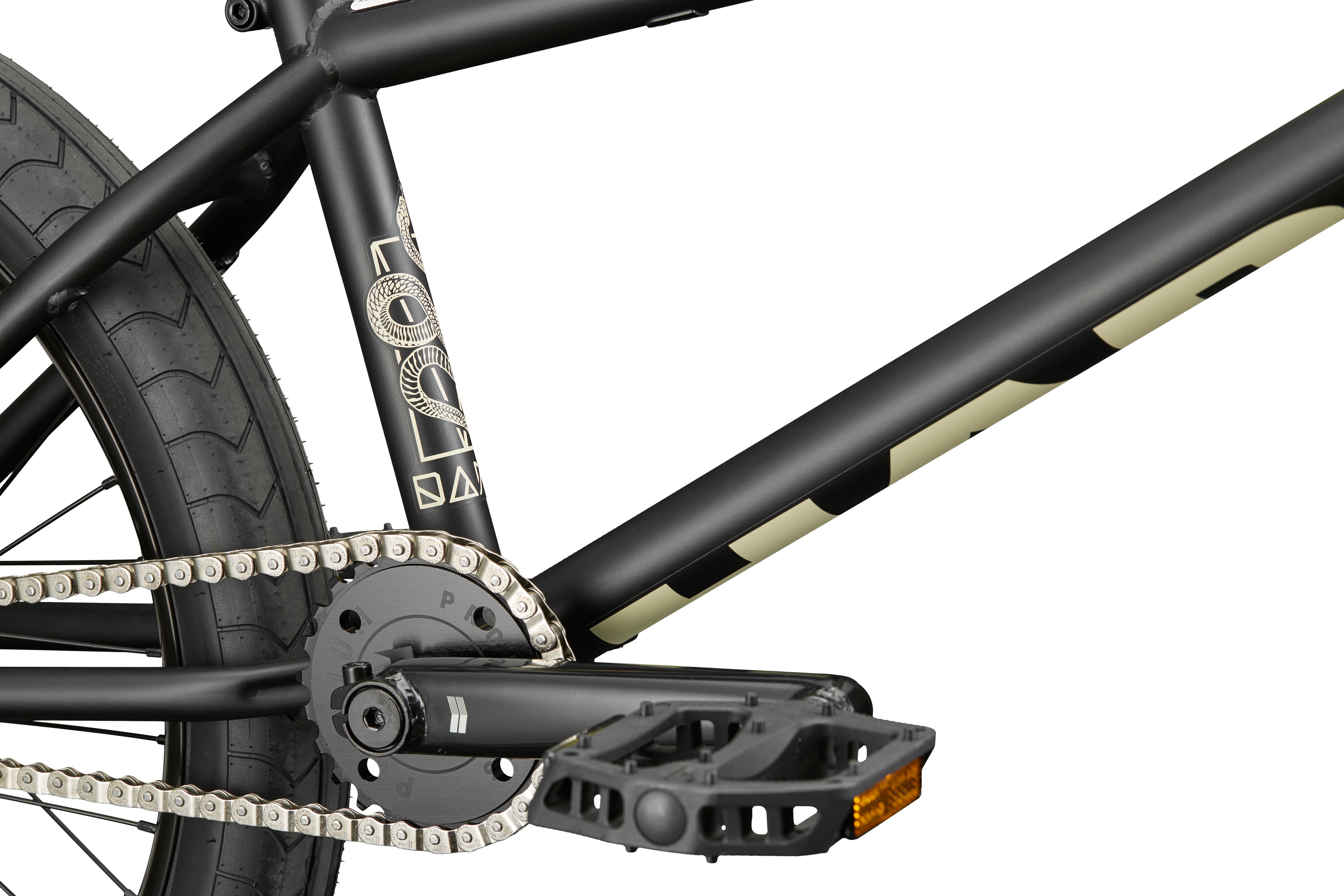

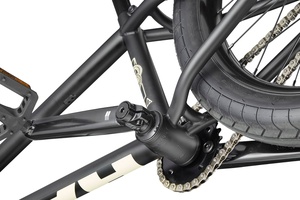

• Cranks: Haro 3-piece chromoly, 170mm, forged 19mm spindle, sealed mid BB


• Sprocket: Haro CNC alloy 25T; chain: KMC Z1 1/8"


• Rims: double wall 20" alloy, 32mm wide, 36 hole, pinned seams


• Front hub: alloy, sealed bearings, female 3/8" axle

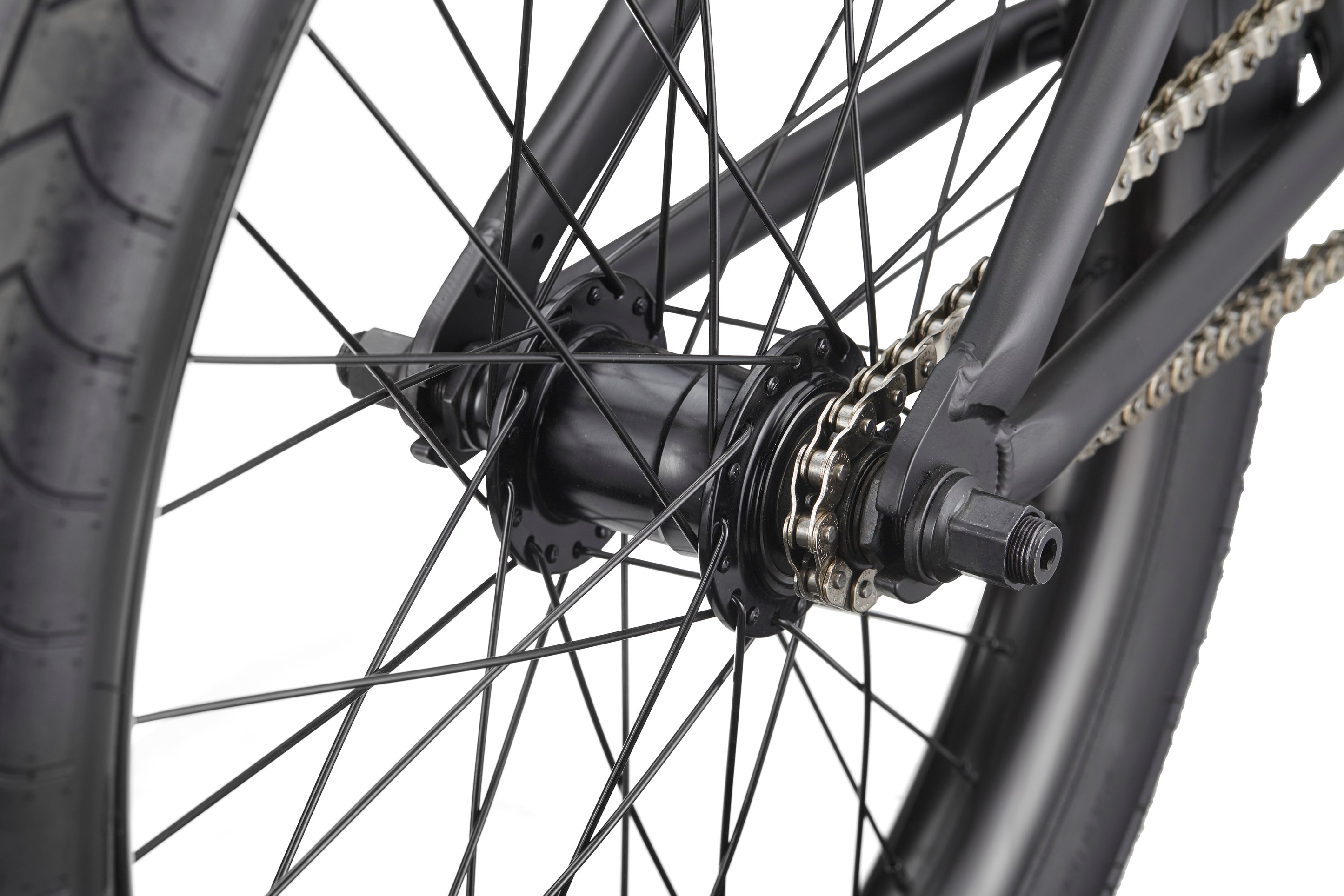

• Rear hub: sealed cassette, alloy shell, 9T driver, 14mm axle


• Tyres: Haro LaMesa 20 x 2.4" front and rear

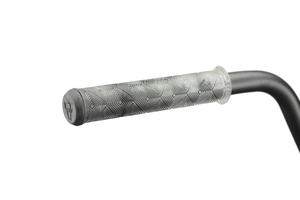

• Grips: Haro Baseline flangeless, 163mm

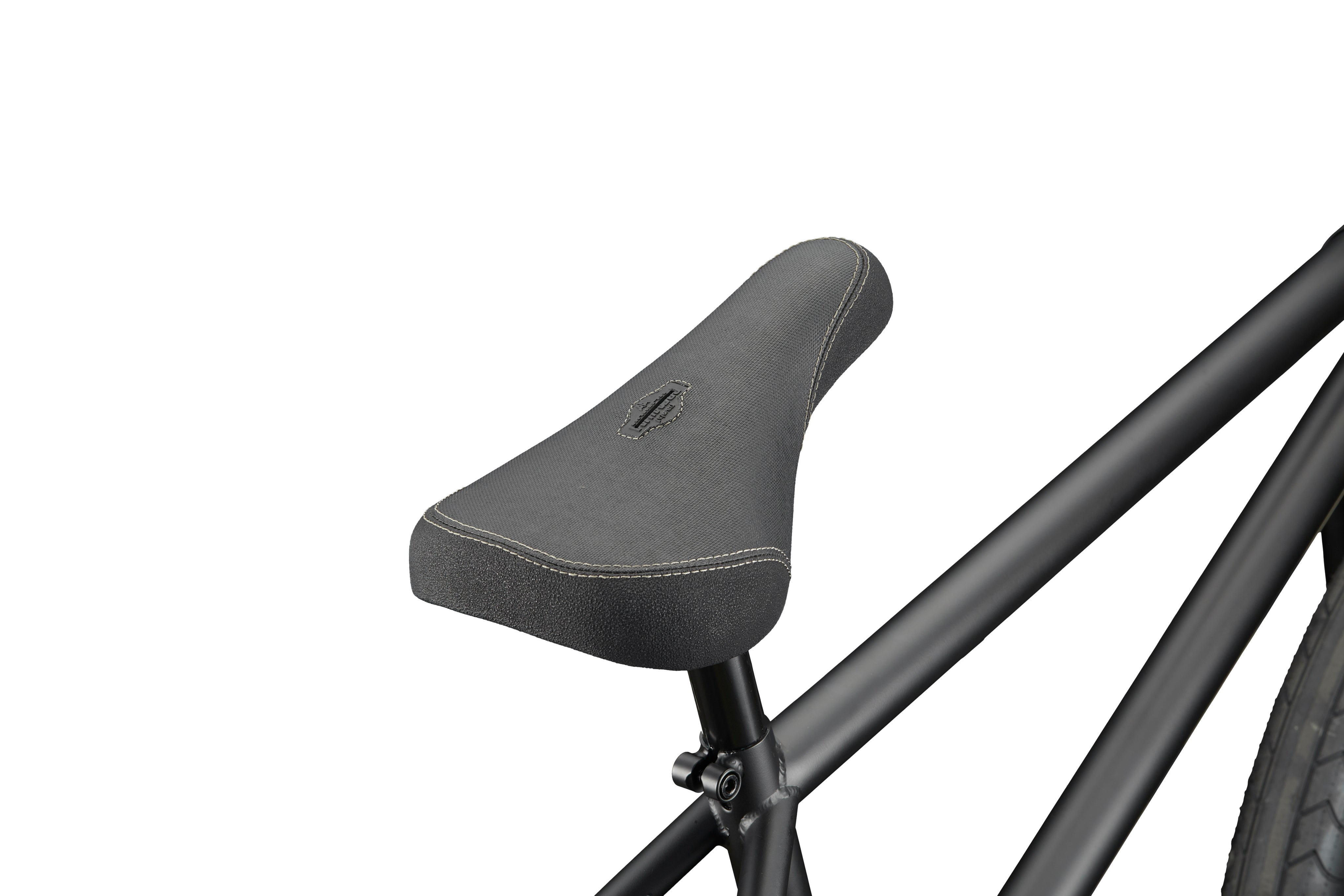

• Seat: Haro Baseline Pivotal saddle with Pivotal alloy post, 200mm


• Pedals: Haro Baseline poly platform, chromoly axles

Compatibility

• Integrated 1-1/8" headset


• Pivotal seat/post system


• 9T cassette driver, 14mm rear axle

In the Box

• Complete bike


• 2 x nylon-sleeve pegs with alloy core

Good to Know

• Rims are a brakeless profile.


• Geometry: 75.5° head angle, 71.4° seat angle, 39mm BB height, 540mm standover.


• Other sizes/colours of this model: Chad Gloss Metallic Bronze (25260).
